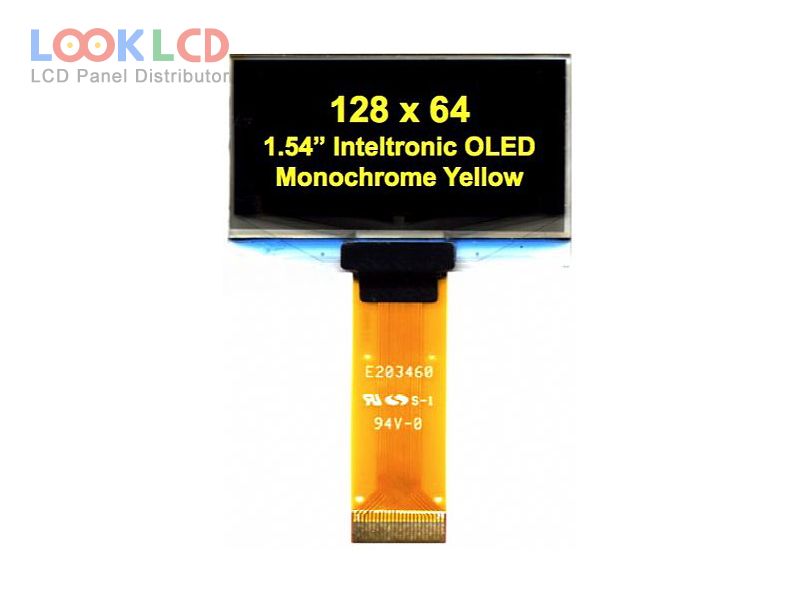

| Číslo dielu | UG-2864ASYCG01 |
| Značka | WiseChip |
| Veľkosť | 1.54 |
| Aplikácia | IA |
| Rozhodnutie | 128×64 |
| Zloženie | OLED |
| Jas | 150 |
| CR | 10000:1 |
| Farby | Mono(Yellow) |
| Podsvietenie | self |
| Rozhranie | CPU/SPI/I²C |
| značka panelu | WiseChip |
| panelový model | UG-2864ASYCG01 |
| typ panelu | PM-OLED , OLED |
| veľkosť panelu | 1.54 inch |
| rozhodnutie | 128×64 |
| aktívna oblasť | 35.056×17.52 mm |
| obrys | 45.24×29.14×2.1 mm |
| povrch | |
| jas | 150 cd/m² (Typ.) |
| kontrastný pomer | 10000 : 1 (Typ.) |
| zobraziť farby | Mono(Yellow) (1-bit) |
| pozorovací uhol | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| vodič ic | COG Built-in SSD1305 |
| signálové rozhranie | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 24 pins |
| vstupné napätie | 2.8/12.5V (Typ.)(VDD/VCC) |
| rohs: | |
| aplikácie | IA |
| UG-2864ALBPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASWIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASWPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASYCG01 | WiseChip | 1.54 | 128×64 |
| UG-2864ASYDT01 | WiseChip | 2.7 | 128×64 |
| UG-2864HMBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864KLBLG01 | WiseChip | 1.3 | 128×64 |
| UG-2864KLBMG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KSWLG01 | WiseChip | 1.3 | 128×64 |
| UG-2864KSYMG01 | WiseChip | 1.54 | 128×64 |
| EL240.128.45 INT | PLANAR | 4.8 | 240×128 |
| EL640.480-AG1 ET CC | Lumineq | 8.1 | 640×480 |
| G057AGE-T01 | Innolux | 5.7 | 320×240 |
| G150XTT01.0 | AUO | 15.0 | 1024×768 |
| LQ064V3DG05 | SHARP | 6.4 | 640×480 |
| LQ084S3LG03 | SHARP | 8.4 | 800×600 |
| LQ104V1LG61 | SHARP | 10.4 | 640×480 |
| LTB190E3-L01 | Samsung | 19.0 | 1280×1024 |
| TM101JDHP01 | Tianma | 10.1 | 1280×800 |
| TX16D18VM2CAB | KOE | 6.2 | 800×300 |
