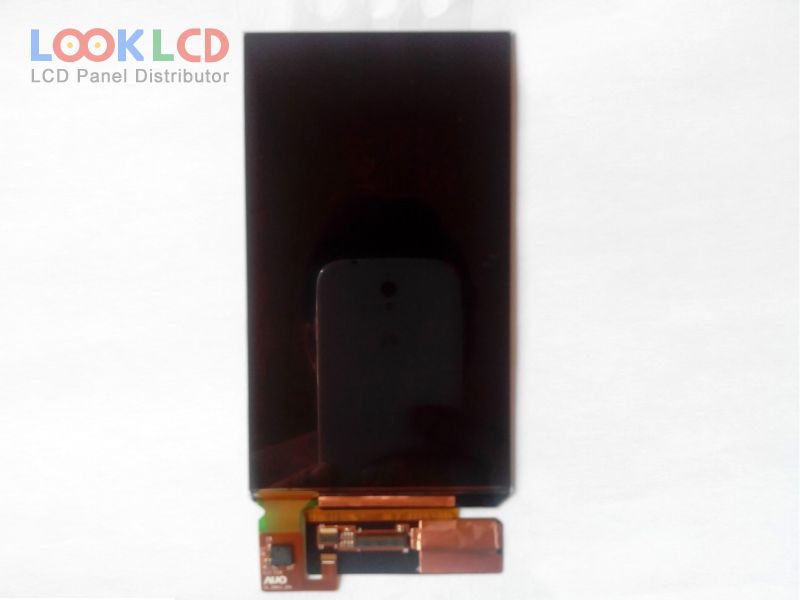

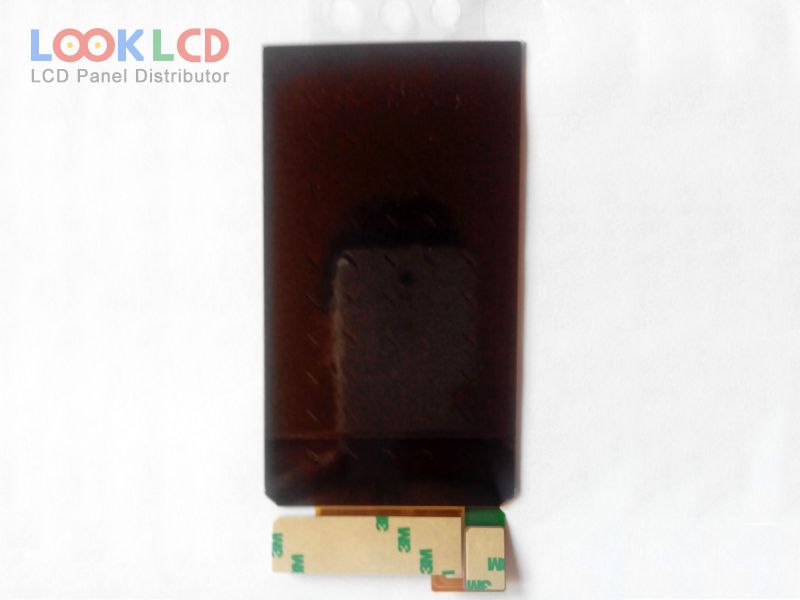

| Číslo dielu | H497TLB01.4 |
| Značka | AUO |
| Veľkosť | 5.0 |
| Aplikácia | MPH |
| Rozhodnutie | 720×1280 |
| Zloženie | OLED |
| Jas | 275 |
| CR | 10000:1 |
| Farby | 16.7M |
| Podsvietenie | self |
| Rozhranie | MIPI |
| značka panelu | AUO |
| panelový model | H497TLB01.4 |
| typ panelu | AM-OLED , OLED |
| veľkosť panelu | 5.0 inch |
| rozhodnutie | 720(RGB)×1280 , WXGA |
| aktívna oblasť | 61.92×110.08 mm |
| obrys | 65.92×118.64 mm |
| povrch | |
| jas | 275 cd/m² (Typ.) |
| kontrastný pomer | 10000 : 1 (Min.) |
| zobraziť farby | 16.7M (8-bit), CIE1931100% |
| pozorovací uhol | 80/80/80/80 (Min.)(CR≥1600)(L/R/U/D) |
| frekvencia | 60Hz |
| vodič ic | Built-in RM69052 |
| signálové rozhranie | MIPI (4 data lanes), 39 pins |
| vstupné napätie | 1.8/3.1/3.7V (Typ.)(VDDI/VCI/VBAT) |
| aplikácie | MPH |
