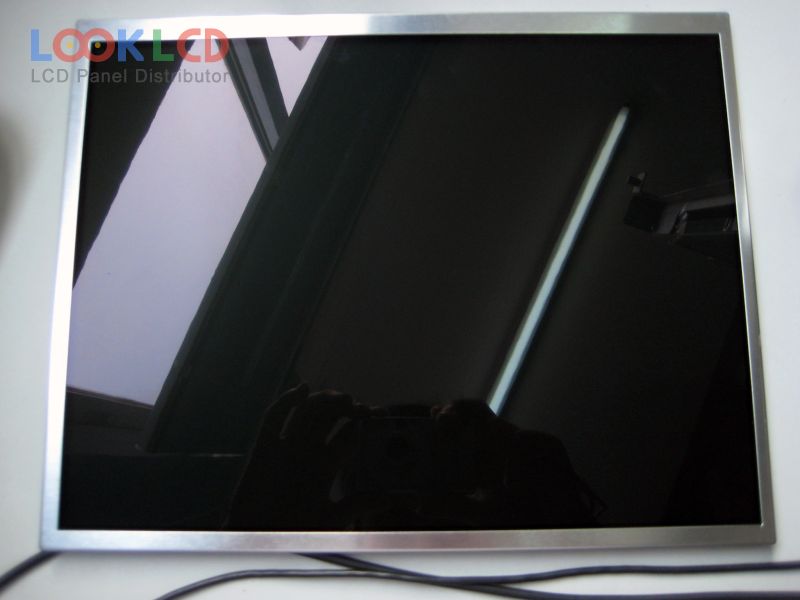

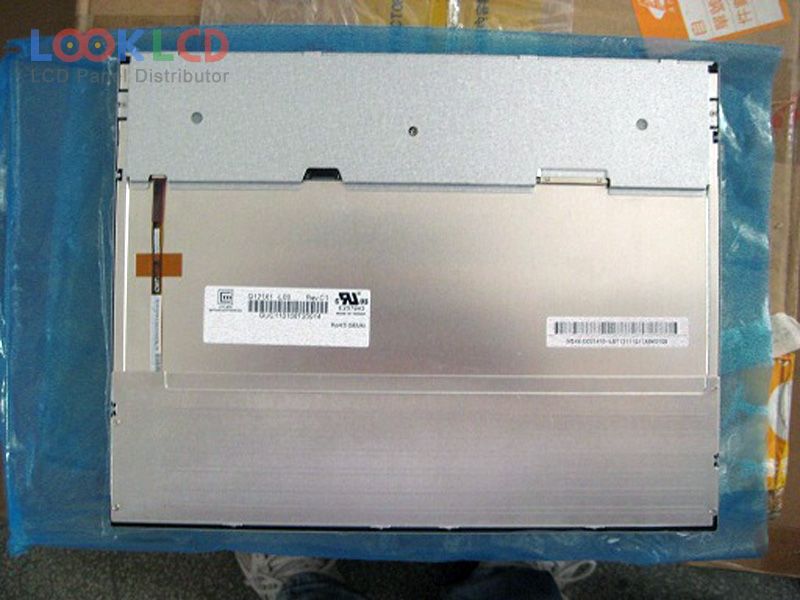

| Číslo dielu | G121X1-L03 |
| Značka | Innolux |
| Veľkosť | 12.1 |
| Aplikácia | CNS |
| Rozhodnutie | 1024×768 |
| Zloženie | LCM |
| Jas | 600 |
| CR | 700:1 |
| Farby | 262K/16.2M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CMO |
| panelový model | G121X1-L03 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 12.1 inch |
| rozhodnutie | 1024(RGB)×768 , XGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 245.76×184.32 mm |
| obrys | 260.5×204×8.9 mm |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 600 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 262K/16.2M (6-bit / 6-bit + FRC), CIE193163% |
| Doba odozvy | 5/11 (Typ.)(Tr/Td) |
| pozorovací uhol | 80/80/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupné napätie | 3.3/5.0V (Typ.)(VCC) |
| aplikácie | CNS |
