| Číslo dielu | CRD070TN03-50NM01 |
| Značka | Other |
| Veľkosť | 7.0 |
| Aplikácia | IA |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 200 |
| CR | 500:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | CRD |

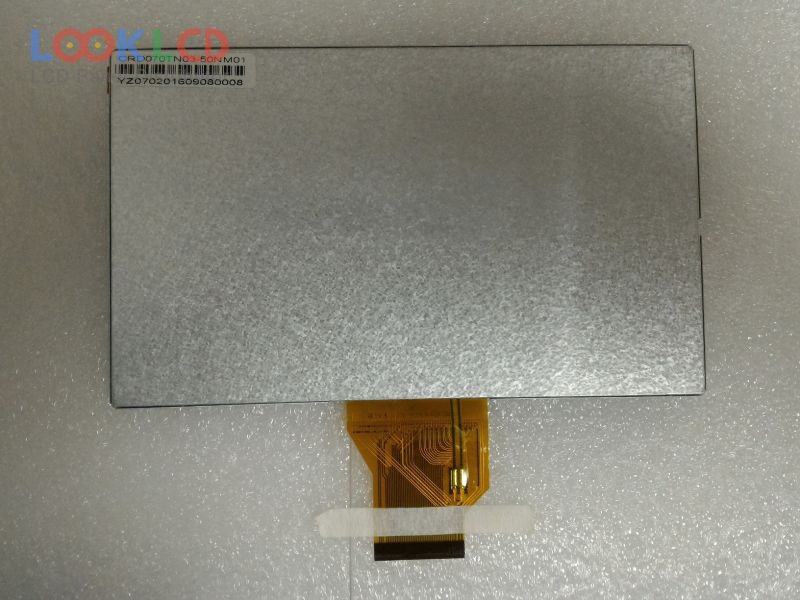

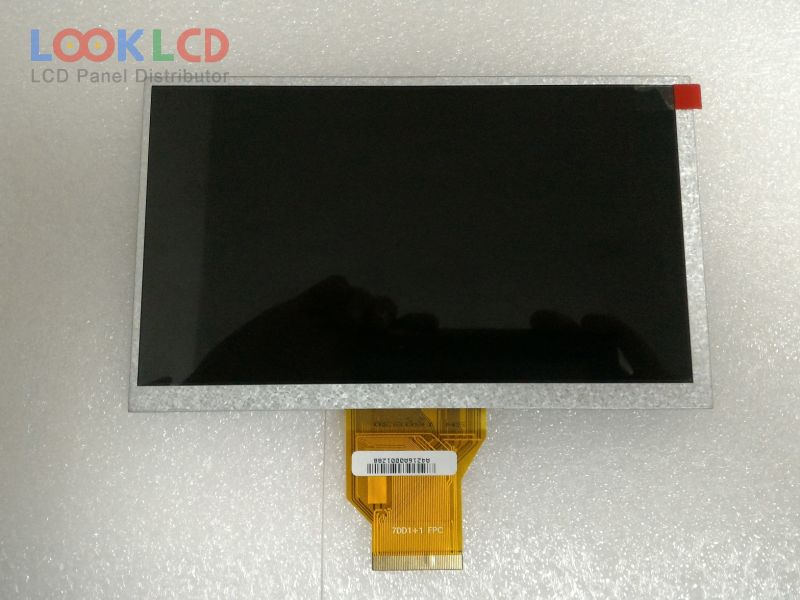

| panelový model | CRD070TN03-50NM01 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 154.08×85.92 mm |
| obrys | 164.9×100 mm |
| povrch | Antiglare |
| jas | 200 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193145% |
| Doba odozvy | 10/15 (Typ.)(Tr/Td) |
| pozorovací uhol | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S7PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 8-bit), 50 pins |
| vstupné napätie | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikácie | IA |
