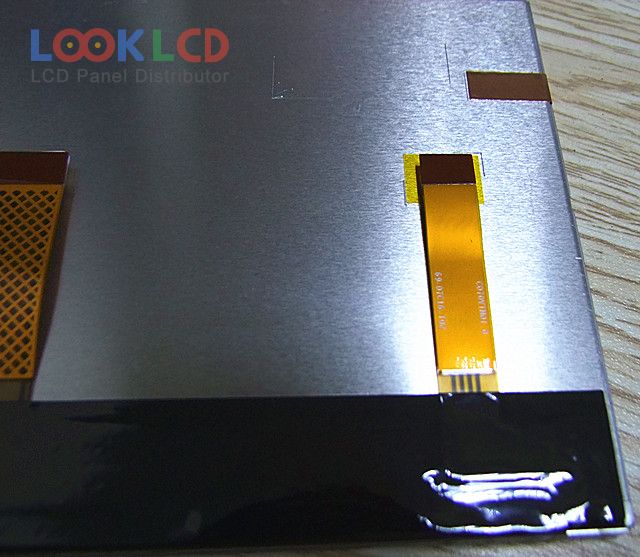

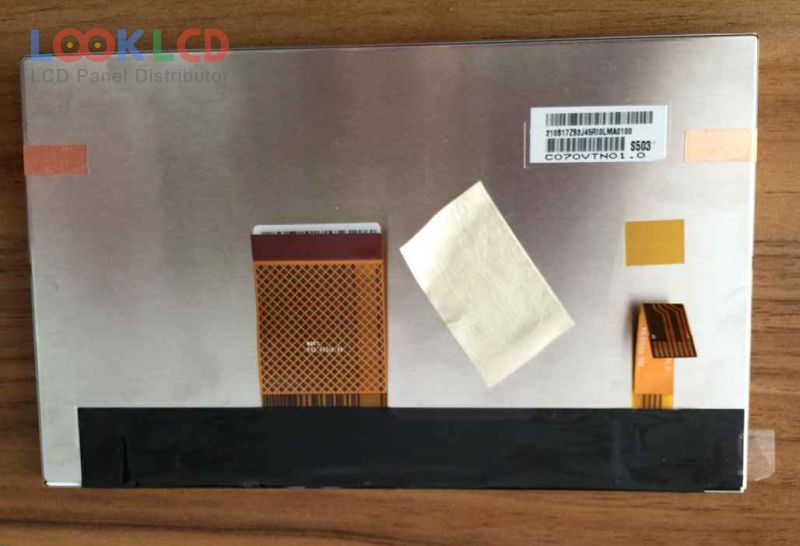

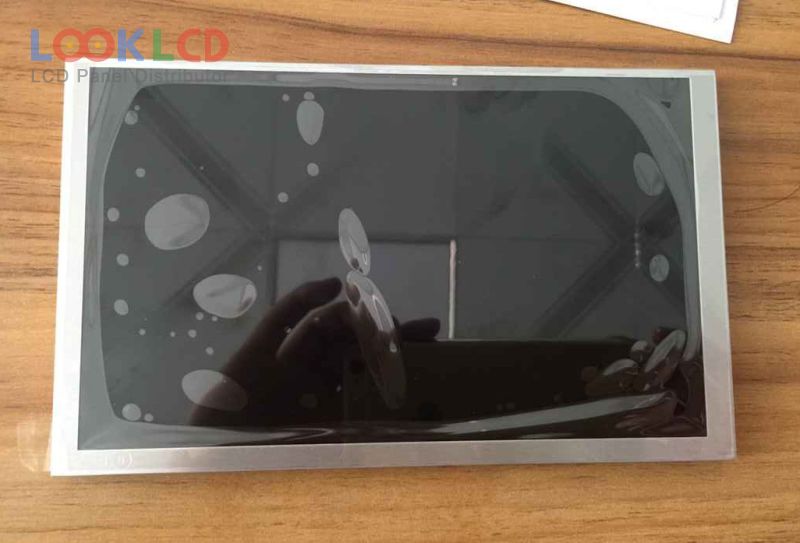

| Číslo dielu | C070VTN01.0 |
| Značka | AUO |
| Veľkosť | 7.0 |
| Aplikácia | CNS |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 750 |
| CR | 600:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | AUO |
| panelový model | C070VTN01.0 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 152.4×91.44 mm |
| obrys | 169×103.45×6.72 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 750 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193160% |
| Doba odozvy | 12/18 (Typ.)(Tr/Td) |
| pozorovací uhol | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 8S2PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 6-bit), 60 pins |
| vstupné napätie | 3.3/11.0/20.0/-10.0V (Typ.)(VDDIO/AVDD/VGH/VGL) |
| aplikácie | CNS |
