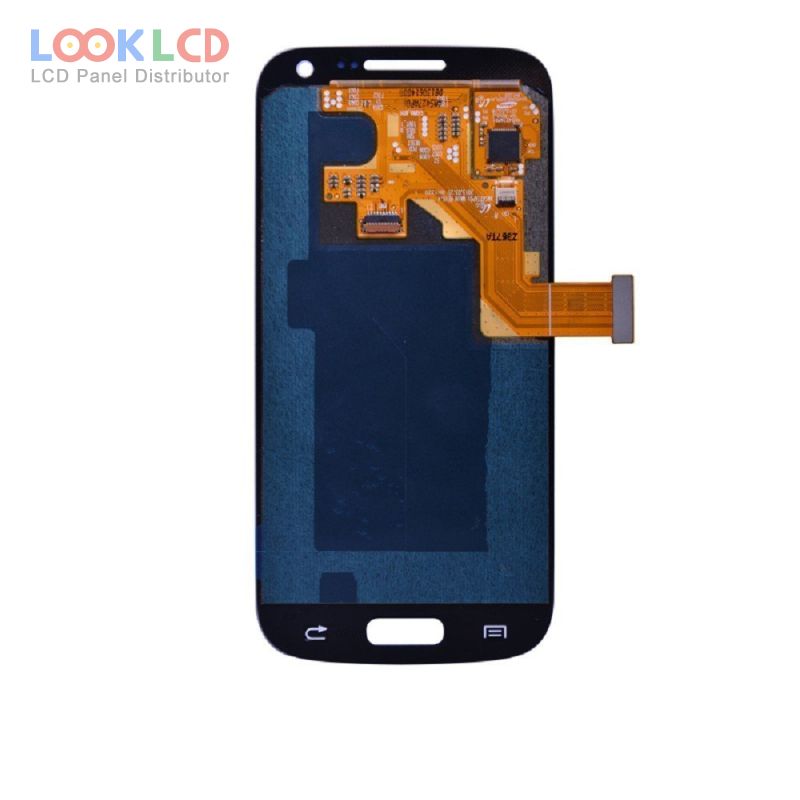

| Číslo dielu | AMS427GL45-0 |
| Značka | Samsung |
| Veľkosť | 4.3 |
| Aplikácia | MPH |
| Rozhodnutie | 480×800 |
| Zloženie | Assembly |
| Jas | 300 |
| CR | 10000:1 |
| Farby | 16.7M |
| Podsvietenie | self |
| Rozhranie | TTL |
| značka panelu | SAMSUNG SMD |
| panelový model | AMS427GL45-0 |
| typ panelu | AM-OLED , Assembly |
| veľkosť panelu | 4.3 inch |
| rozhodnutie | 480(RGB)×800 , WVGA |
| aktívna oblasť | 55.8×93 mm |
| obrys | 62.68×121.93 mm |
| povrch | Hard coating |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 10000 : 1 (Min.) |
| zobraziť farby | 16.7M (8-bit), CIE1931106% |
| pozorovací uhol | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| signálové rozhranie | Parallel RGB (1 ch, 8-bit) + SPI, 54 pins |
| vstupné napätie | 1.8/3.0/3.8V (Typ.)(VDD3/VCI/VBAT) |
| aplikácie | MPH |
