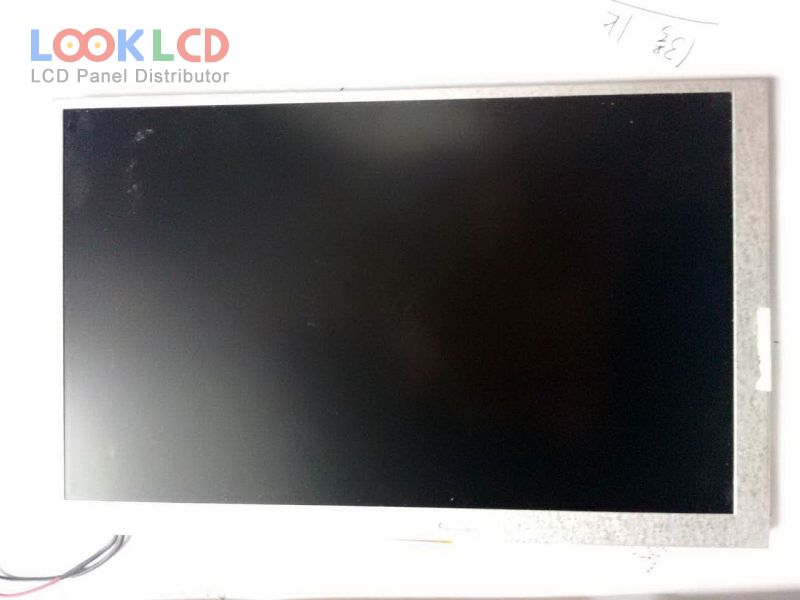

| Číslo dielu | A070VW08 V2 |
| Značka | AUO |
| Veľkosť | 7.0 |
| Aplikácia | CNS |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 500 |
| CR | 500:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | AUO |
| panelový model | A070VW08 V2 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800×480(RGB) , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 152.4×91.44 mm |
| obrys | 165×104×5.4 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 500 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193150% |
| Doba odozvy | 12/18 (Typ.)(Tr/Td) |
| pozorovací uhol | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S11PWLEDWithout Driver |
| signálové rozhranie | TTL (1 ch, 8-bit) + SPI, 60 pins |
| vstupné napätie | 3.3/5/-5/14/-14V (Typ.)(VCC/VDPA/VDNA/VGH/VGL) |
| aplikácie | CNS |
