| Číslo dielu | YXD101301000-60 |
| Značka | SEBO |
| Veľkosť | 10.1 |
| Aplikácia | CNS |
| Rozhodnutie | 1024×600 |
| Zloženie | LCM |
| Jas | 1000 |
| CR | 600:1 |
| Farby | 16.2M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | SEBO |
| panelový model | YXD101301000-60 |

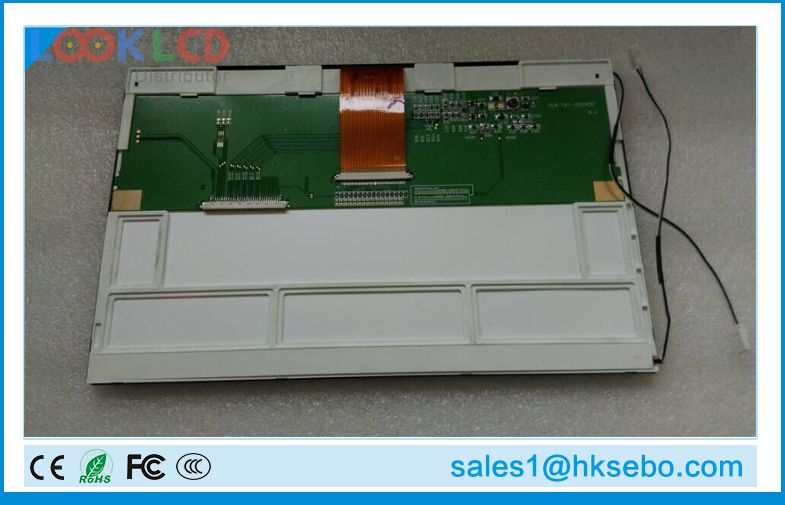

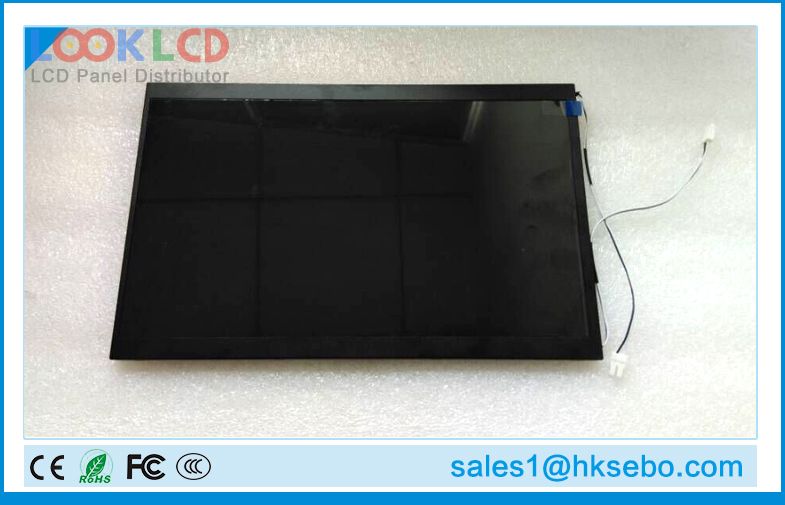

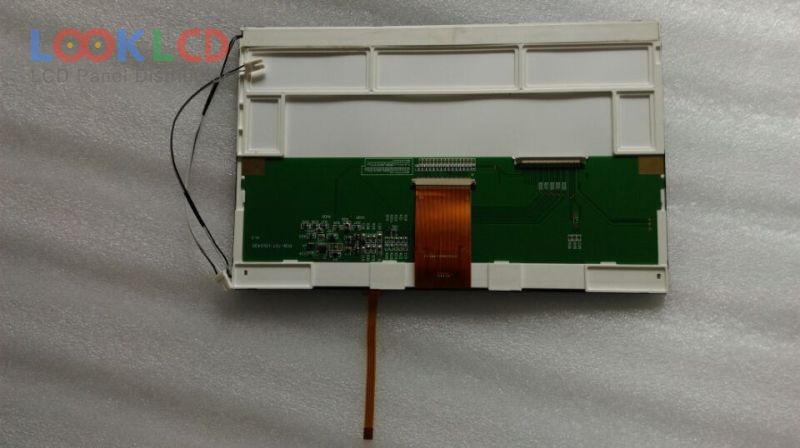

| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.1 inch |
| rozhodnutie | 1024(RGB)×600 , WSVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 222.72×125.28 mm |
| obrys | 235×149.2×6.3 mm |
| povrch | Antiglare |
| jas | 1000 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 16.2M (6-bit + FRC), CIE193152% |
| Doba odozvy | 25 (Typ.)(Tr+Td) |
| pozorovací uhol | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 8-bit), 60 pins |
| vstupné napätie | 3.3/9.6/18/-6V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikácie | CNS |
