| Číslo dielu | V260B1-L02 |
| Značka | Innolux |
| Veľkosť | 26.0 |
| Aplikácia | LCTV |
| Rozhodnutie | 1366×768 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 800:1 |
| Farby | 16.2M |
| Podsvietenie | CCFL |
| Rozhranie | RSDS |
| značka panelu | CMO |

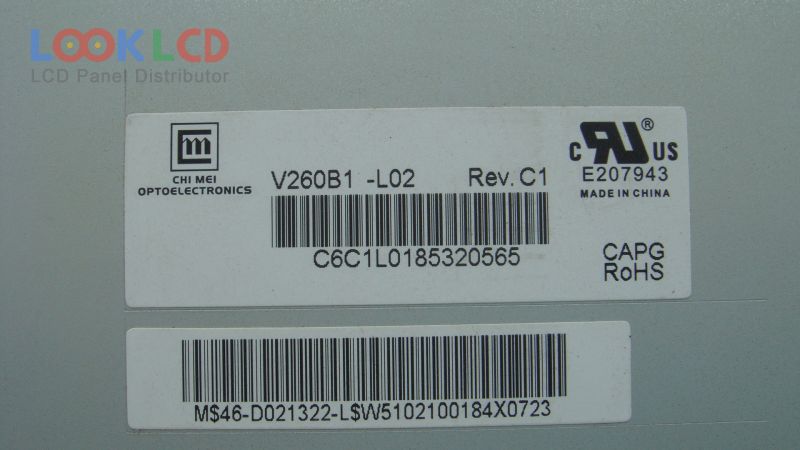

| panelový model | V260B1-L02 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 26.0 inch |
| rozhodnutie | 1366(RGB)×768 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 575.769×323.712 mm |
| obrys | 626×373 mm |
| povrch | |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 16.2M (6-bit + FRC), CIE193172% |
| Doba odozvy | 3/5 (Typ.)(Tr/Td) |
| pozorovací uhol | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |

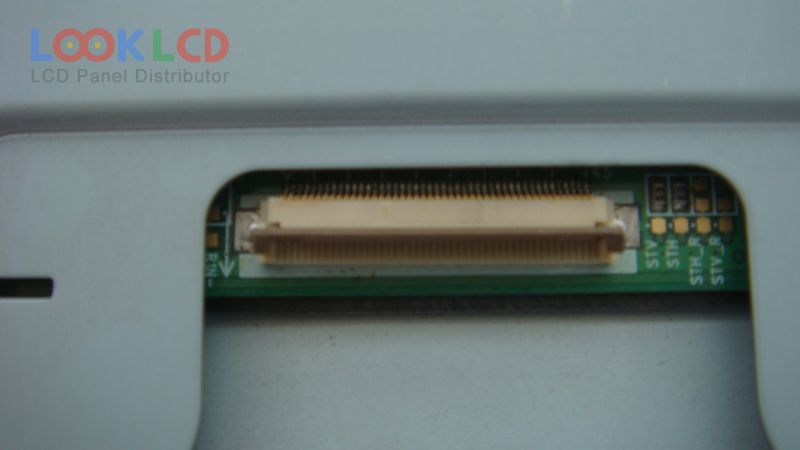

| signálové rozhranie | RSDS (1 Channel), 45 pins |
| vstupné napätie | 5.3.3/5.0V (Typ.)(VDD/VIN5) |
| aplikácie | LCTV |
