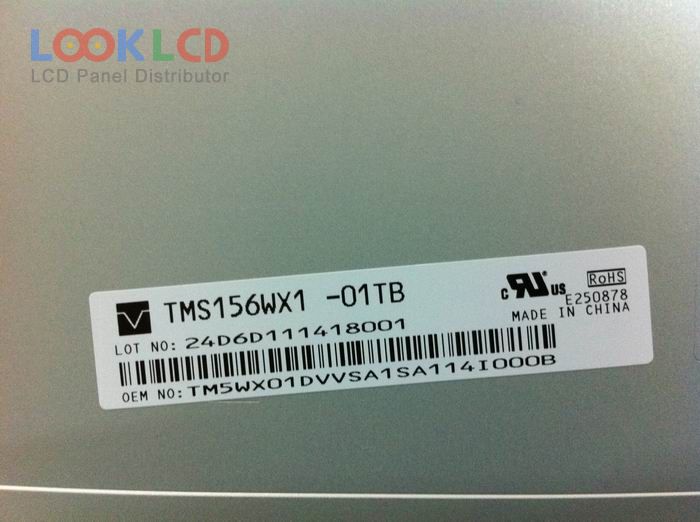

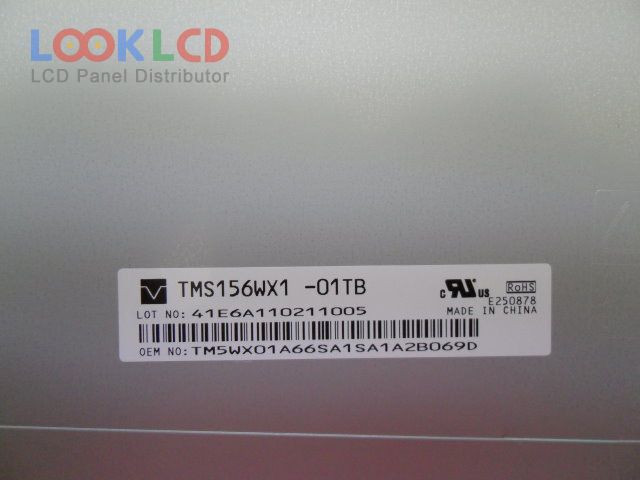

| Číslo dielu | TMS156WX1-01TB |
| Značka | Tianma |
| Veľkosť | 15.6 |
| Aplikácia | DMPC |
| Rozhodnutie | 1366×768 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 500:1 |
| Farby | 16.7M |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | AVIC |
| panelový model | TMS156WX1-01TB 4 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 15.6 inch |
| rozhodnutie | 1366(RGB)×768 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 344.232×193.536 mm |
| obrys | 363.8×215.9×14.8 mm |
| povrch | Antiglare |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC), CIE193160% |
| Doba odozvy | 2/6 (Typ.)(Tr/Td) |
| pozorovací uhol | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (1 ch, 8-bit), 30 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | DMPC |
