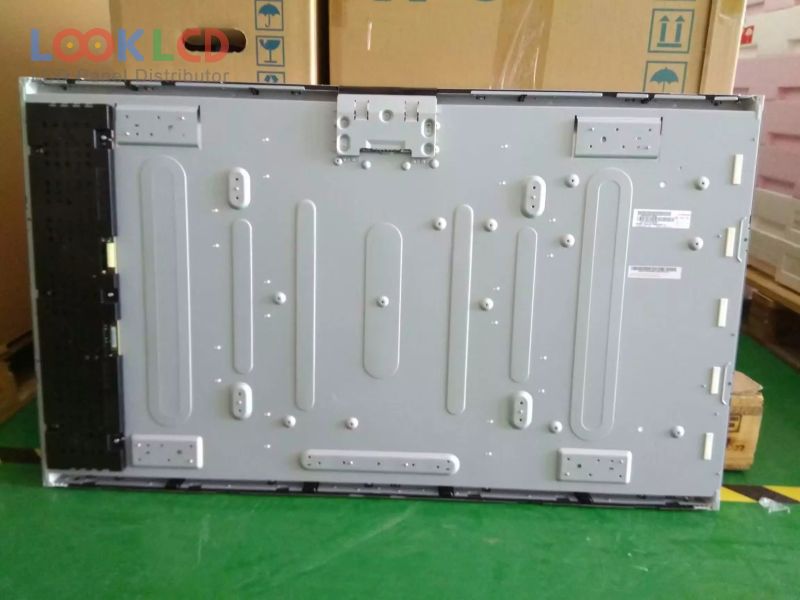

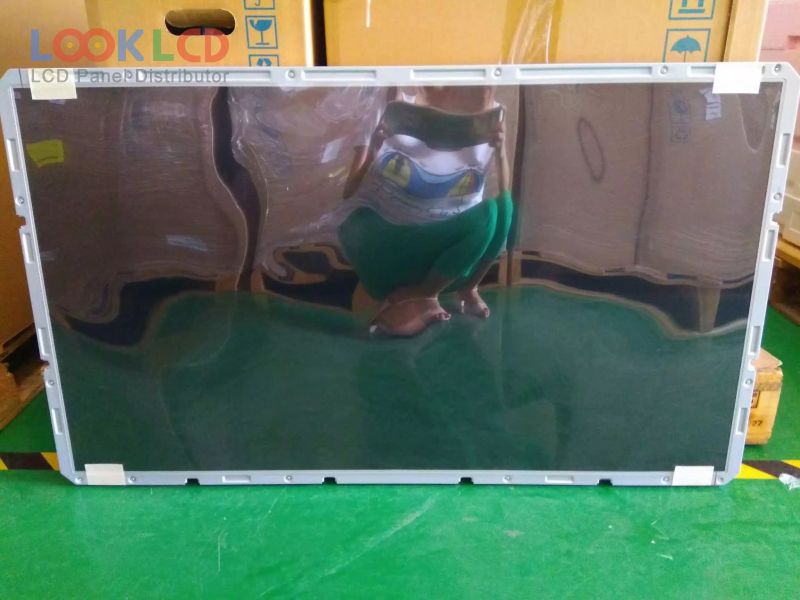

| Číslo dielu | P420HW01 V1 |
| Značka | AUO |
| Veľkosť | 42 |
| Aplikácia | PID |
| Rozhodnutie | 1920×1080 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 4000:1 |
| Farby | 16.7M |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | AUO |
| panelový model | P420HW01 V1 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 42 inch |
| rozhodnutie | 1920(RGB)×1080 , FHD |
| režim zobrazenia | AMVA3, Normally Black, Transmissive |
| aktívna oblasť | 930.24×523.26 mm |
| obrys | 983×576 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 4000:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193172% |
| Doba odozvy | 6.5 (Typ.)(G to G) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 10 pcsCCFLEmbedded (Inverter) |
| signálové rozhranie | LVDS (2 ch, 8-bit), 51 pins |
| vstupné napätie | 12.0V (Typ.) |
| aplikácie | PID |
