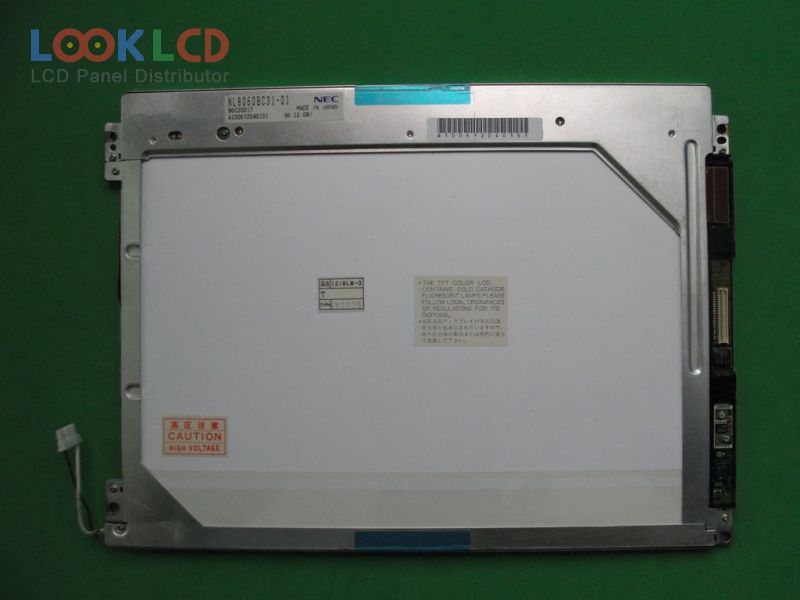

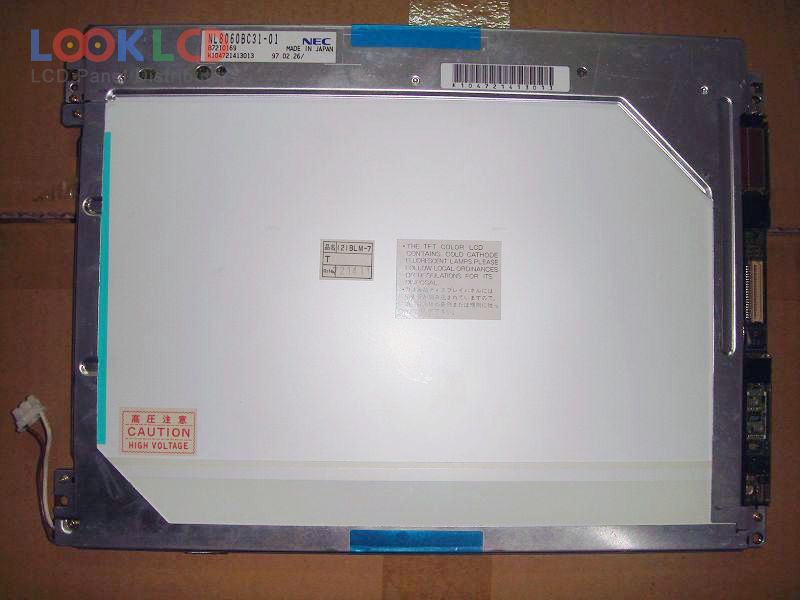

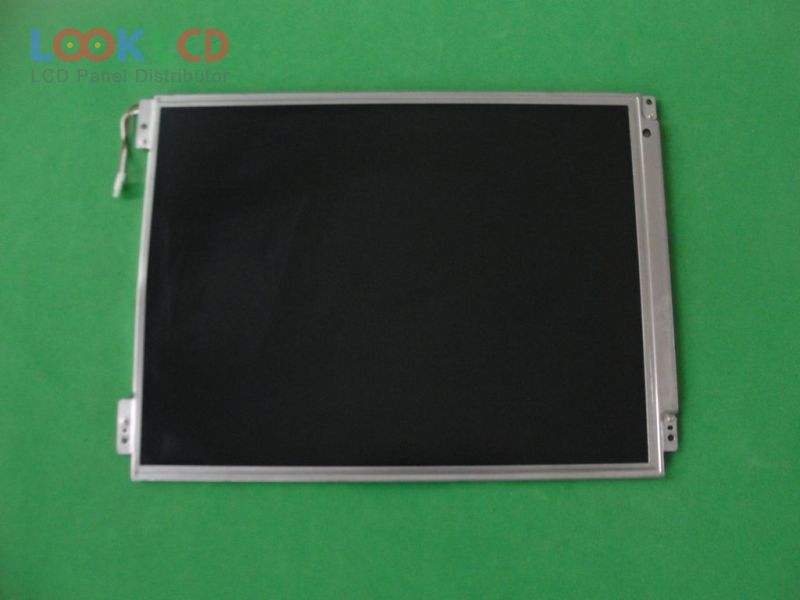

| Číslo dielu | NL8060BC31-01 |
| Značka | NLT |
| Veľkosť | 12.1 |
| Aplikácia | IA |
| Rozhodnutie | 800×600 |
| Zloženie | LCM |
| Jas | 70 |
| CR | 150:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | TTL |
| značka panelu | NEC |
| panelový model | NL8060BC31-01 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 12.1 inch |
| rozhodnutie | 800(RGB)×600 , SVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 244.8×183.6 mm |
| obrys | 277.5×202.5×8 mm |
| povrch | Antireflection |
| jas | 70 cd/m² (Typ.) |
| kontrastný pomer | 150:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193142% |
| Doba odozvy | 40 (Max.)(Tr) |
| pozorovací uhol | 50/50/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhranie | CMOS (1 ch, 6-bit), 41 pins |
| vstupné napätie | 3.3/5.0V (Typ.)(VCC) |
| aplikácie | IA |
