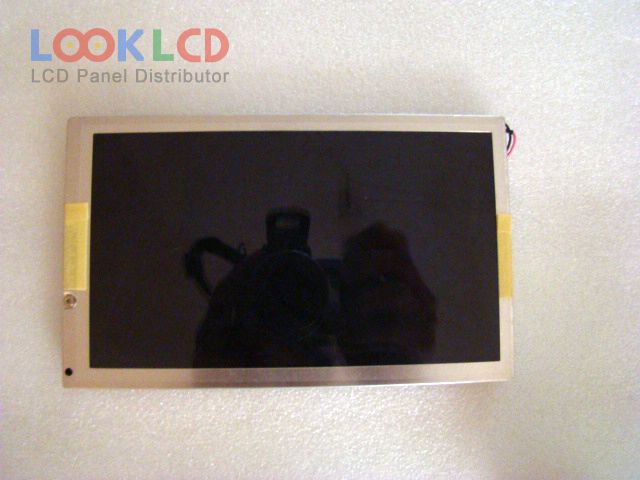

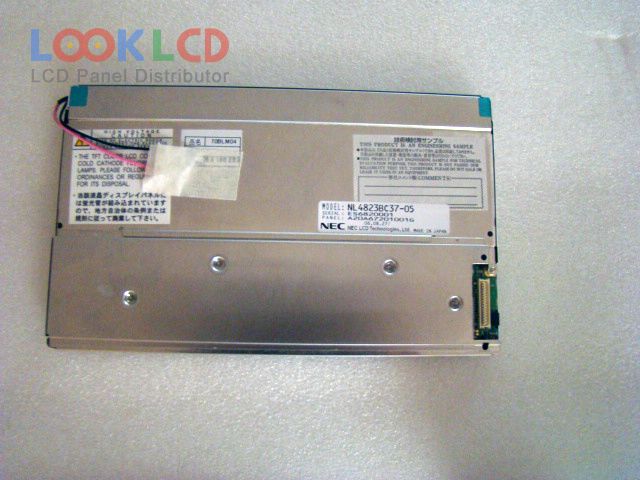

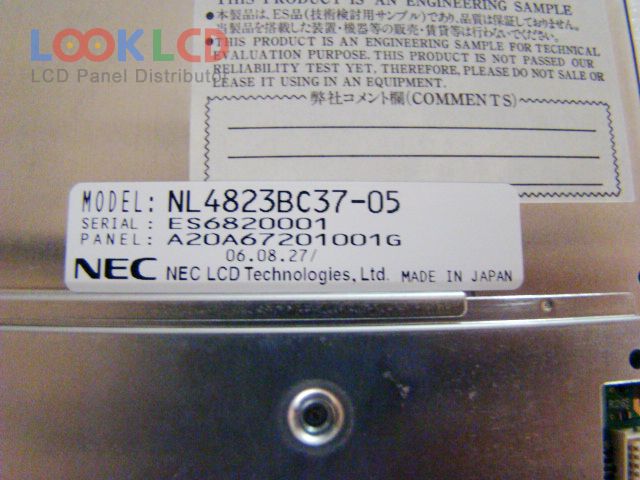

| Číslo dielu | NL4823BC37-05 |
| Značka | NLT |
| Veľkosť | 7.0 |
| Aplikácia | IA |
| Rozhodnutie | 480×234 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 600:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | TTL |
| značka panelu | NEC |
| panelový model | NL4823BC37-05 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 480(RGB)×234 |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 154.08×87.05 mm |
| obrys | 174.5×105.5×11 mm |
| povrch | Clear, Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193140% |
| Doba odozvy | 6/19 (Typ.)(Tr/Td) |
| pozorovací uhol | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhranie | CMOS (1 ch, 6-bit), 31 pins |
| vstupné napätie | 3.3V (Typ.)(VCC) |
| aplikácie | IA |
