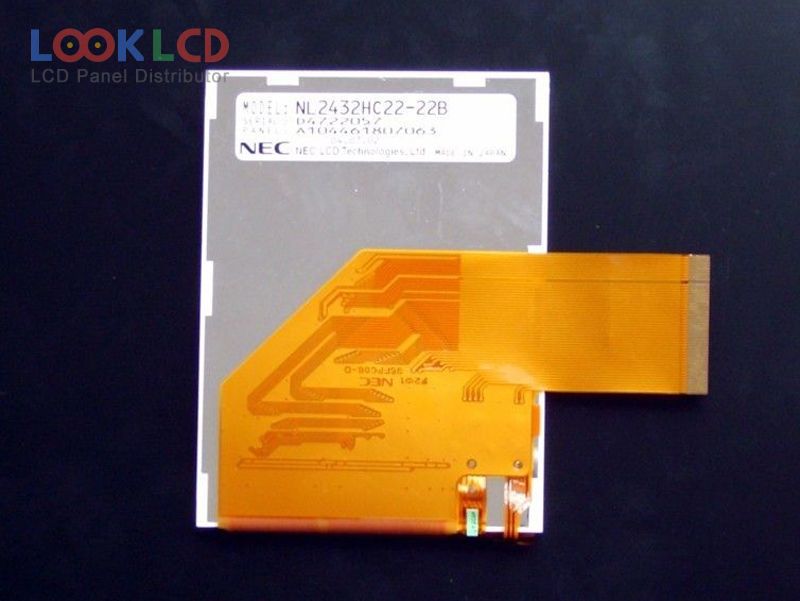

| Číslo dielu | NL2432HC22-22B |
| Značka | NLT |
| Veľkosť | 3.5 |
| Aplikácia | PDA |
| Rozhodnutie | 240×320 |
| Zloženie | LCM |
| Jas | 90 |
| CR | 90:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | NEC |
| panelový model | NL2432HC22-22B |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 3.5 inch |
| rozhodnutie | 240(RGB)×320 , QVGA |
| režim zobrazenia | TN, Normally White, Transflective |
| aktívna oblasť | 53.64×71.52 mm |
| obrys | 64×85×4.85 mm |
| povrch | |
| jas | 90 cd/m² (Typ.) |
| kontrastný pomer | 90:1 (Typ.)(Transmissive)6:1 (Typ.)(Reflective) |
| zobraziť farby | 262K (6-bit), CIE193140% |
| Doba odozvy | 14/25 (Typ.)(Tr/Td) |
| pozorovací uhol | |
| frekvencia | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhranie | CMOS (1 ch, 6-bit), 50 pins |
| vstupné napätie | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
| aplikácie | PDA |
