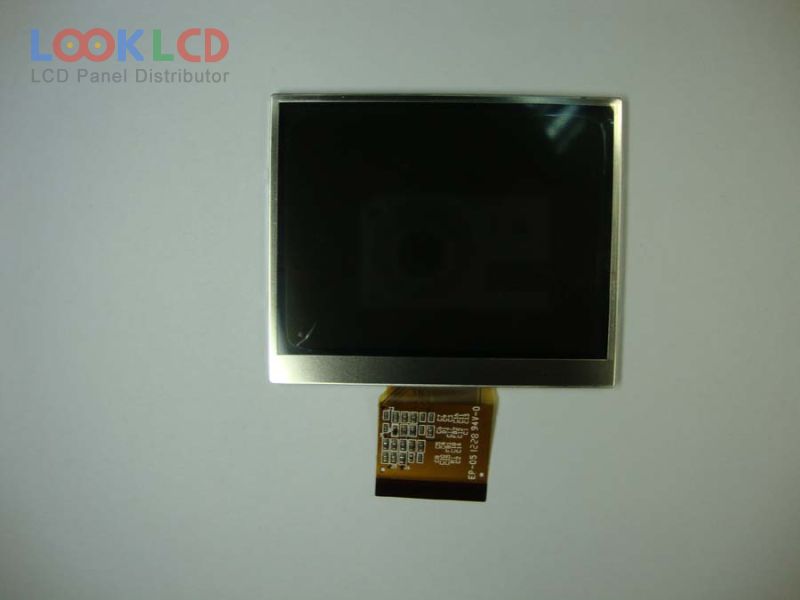

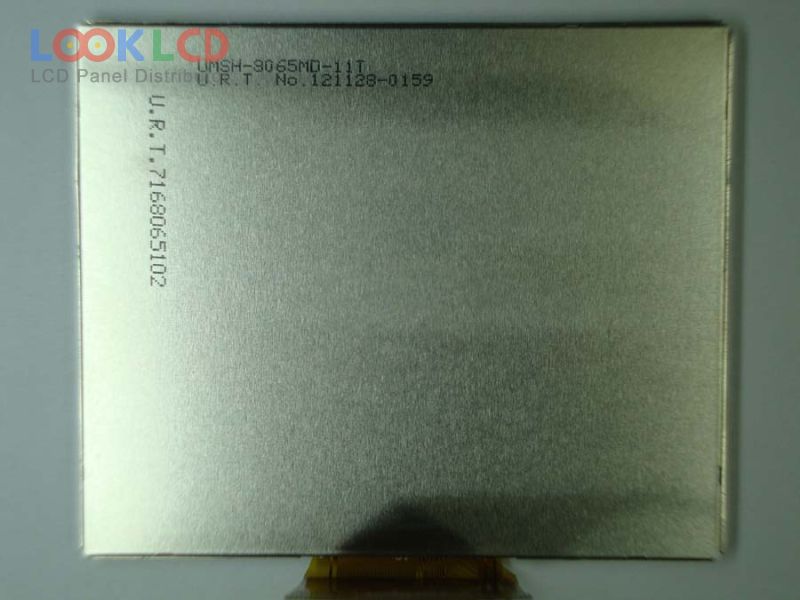

| Číslo dielu | UMSH-8065MD-11T |
| Značka | Other |
| Veľkosť | 3.5 |
| Aplikácia | IA |
| Rozhodnutie | 320×240 |
| Zloženie | LCM |
| Jas | 700 |
| CR | 800:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | Parallel/Serial |
| značka panelu | URT |
| panelový model | UMSH-8065MD-11T |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 3.5 inch |
| rozhodnutie | 320(RGB)×240 , QVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 70.08×52.56 mm |
| obrys | 76.9×63.9×3.5 mm |
| povrch | |
| jas | 700 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 15/35 (Typ.)(Tr/Td) |
| pozorovací uhol | 80/80/45/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 70Hz |
| typ lampy | 5S2PWLEDWithout Driver |
| signálové rozhranie | Digital RGB (8/24-bit) + SPI, CCIR601/656, 50 pins |
| vstupné napätie | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| aplikácie | IA |
