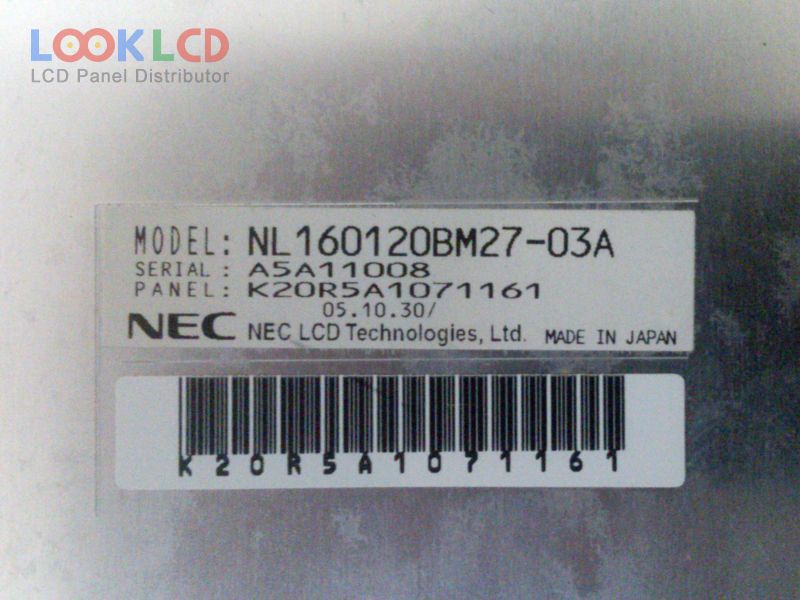

| Číslo dielu | NL160120BM27-03A |
| Značka | NLT |
| Veľkosť | 21.3 |
| Aplikácia | MD |
| Rozhodnutie | 1600×1200 |
| Zloženie | LCM |
| Jas | 1000 |
| CR | 700:1 |
| Farby | Grayscale |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | NEC |
| panelový model | NL160120BM27-03A |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 21.3 inch |
| rozhodnutie | 1600(LCR)×1200 , UXGA |
| režim zobrazenia | SA-SFT, Normally Black, Transmissive |
| aktívna oblasť | 432×324 mm |
| obrys | 457×350×25.5 mm |
| povrch | Antiglare, Hard coating (2H) |
| jas | 1000 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | Grayscale (8-bit) |
| Doba odozvy | 17/18 (Typ.)(Tr/Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 6 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (2 ch, 8-bit), 40 pins |
| vstupné napätie | 12.0V (Typ.) |
| aplikácie | MD |
