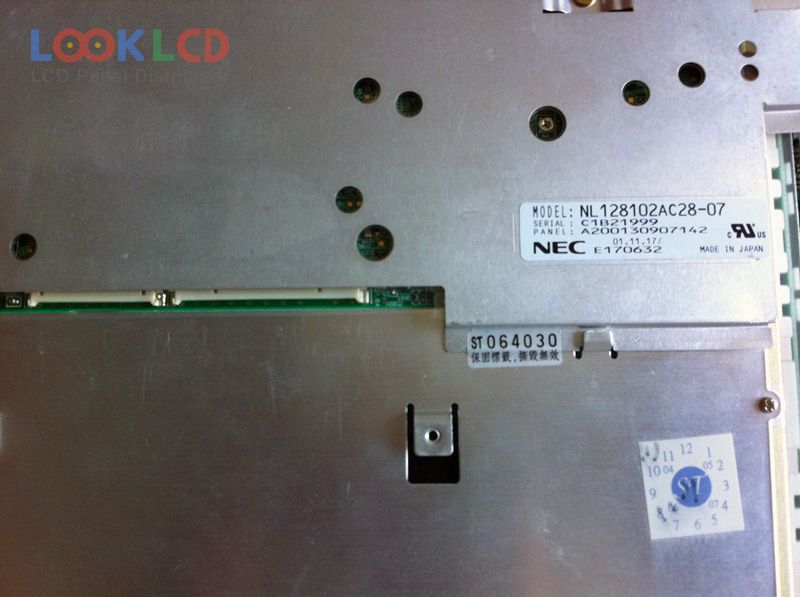

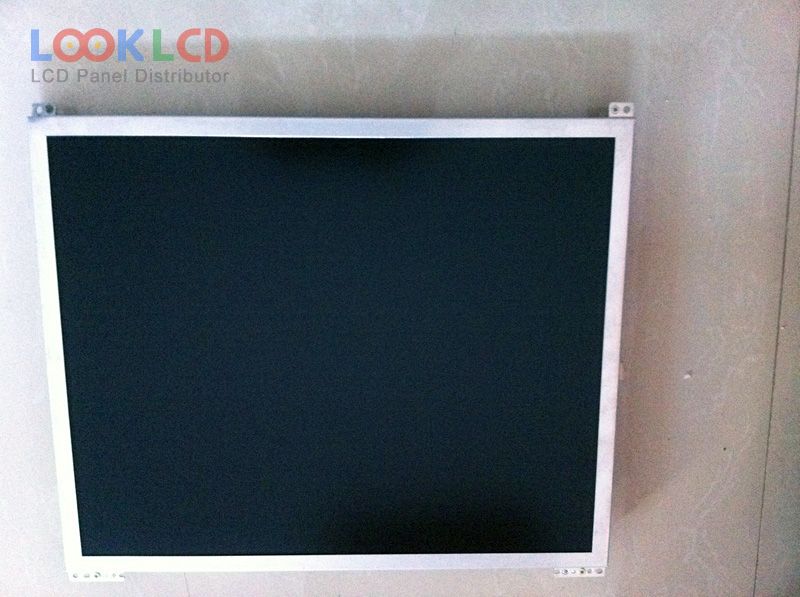

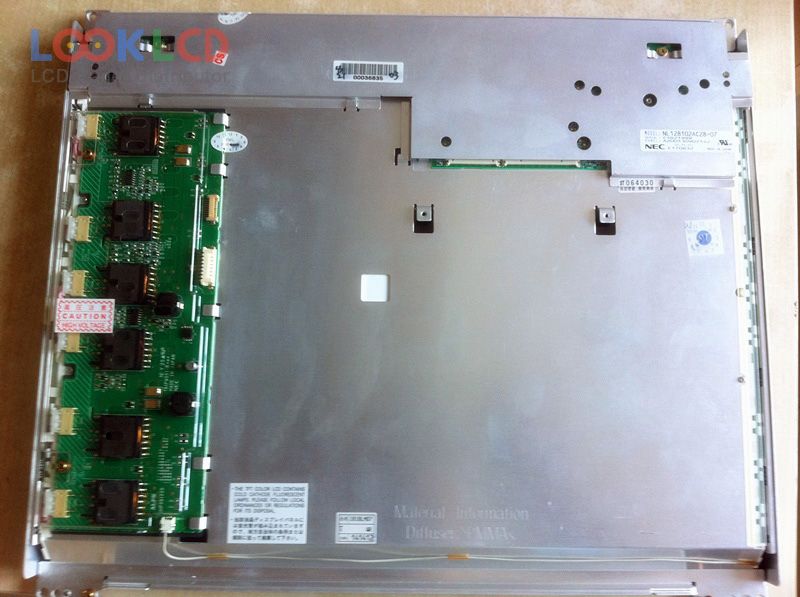

| Číslo dielu | NL128102AC28-07 |
| Značka | NLT |
| Veľkosť | 18.1 |
| Aplikácia | IA |
| Rozhodnutie | 1280×1024 |
| Zloženie | LCM |
| Jas | 240 |
| CR | 300:1 |
| Farby | 16.7M |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | NEC |
| panelový model | NL128102AC28-07 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 18.1 inch |
| rozhodnutie | 1280(RGB)×1024 , SXGA |
| režim zobrazenia | A-SFT, Normally Black, Transmissive |
| aktívna oblasť | 359.04×287.232 mm |
| obrys | 389×317.2×31.3 mm |
| povrch | Hard coating (2H), Antireflection |
| jas | 240 cd/m² (Typ.) |
| kontrastný pomer | 300:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193160% |
| Doba odozvy | 15/14 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 12 pcsCCFLEmbedded (Inverter) |
| signálové rozhranie | LVDS (2 ch, 8-bit), 50 pins |
| vstupné napätie | 12.0V (Typ.) |
| aplikácie | IA |
