| Číslo dielu | N156BGE-L41 |
| Značka | Innolux |
| Veľkosť | 15.6 |
| Aplikácia | NBPC |
| Rozhodnutie | 1366×768 |
| Zloženie | LCM |
| Jas | 200 |
| CR | 650:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |

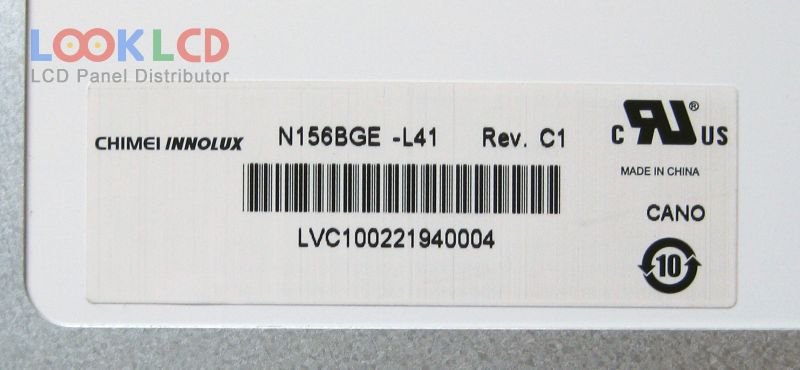

| značka panelu | CHIMEI INNOLUX |
| panelový model | N156BGE-L41 21 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 15.6 inch |
| rozhodnutie | 1366(RGB)×768 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 344.232×193.536 mm |
| obrys | 359.5×223.8×3.8 mm |
| tvarový štýl | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 200 cd/m² (Typ.) |
| kontrastný pomer | 650:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193145% |
| Doba odozvy | 3/7 (Typ.)(Tr/Td) |
| pozorovací uhol | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |

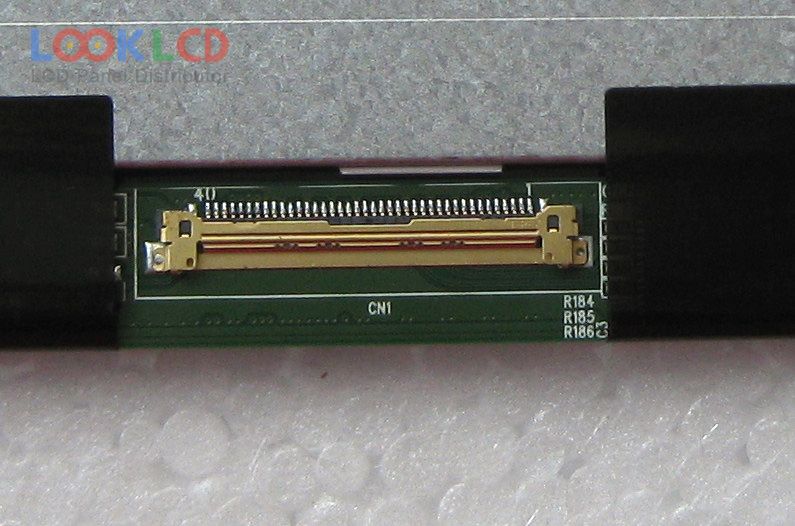

| signálové rozhranie | LVDS (1 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NBPC |
