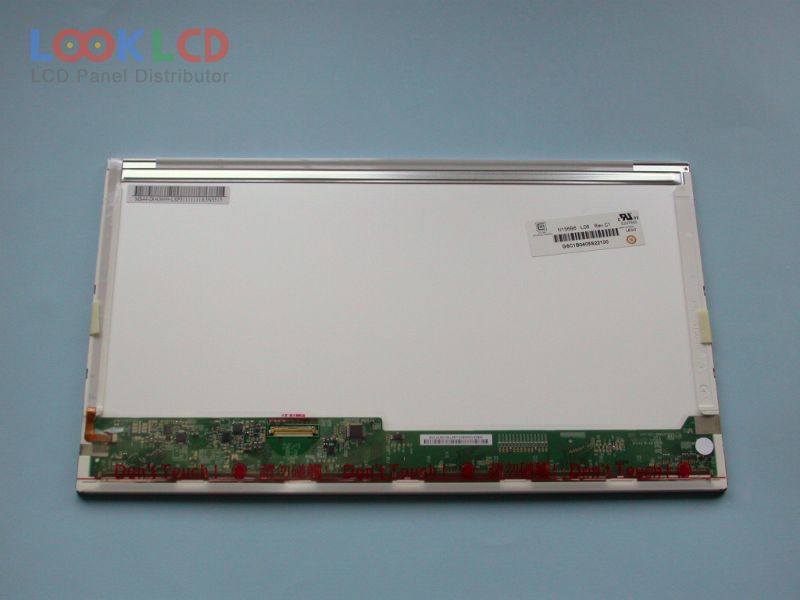

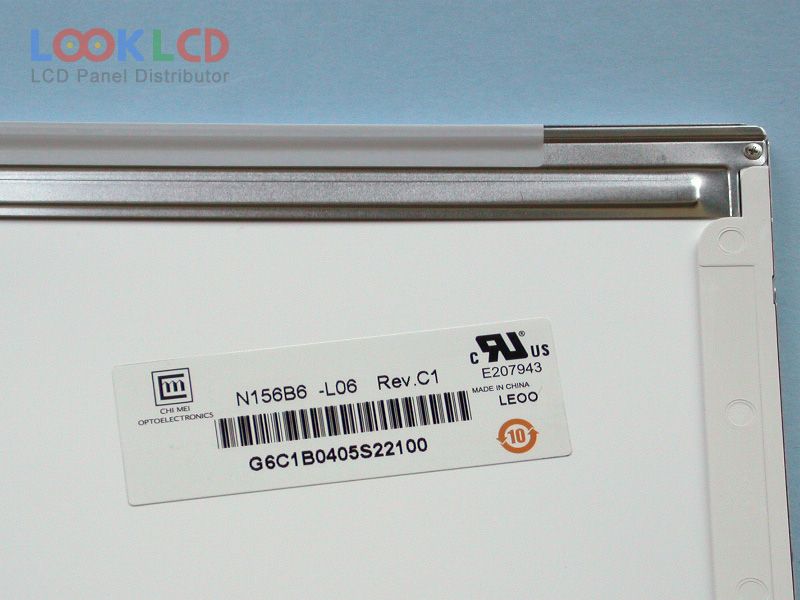

| Číslo dielu | N156B6-L06 |
| Značka | Innolux |
| Veľkosť | 15.6 |
| Aplikácia | NBPC |
| Rozhodnutie | 1366×768 |
| Zloženie | LCM |
| Jas | 170 |
| CR | 650:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CMO |
| panelový model | N156B6-L06 61 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 15.6 inch |
| rozhodnutie | 1366(RGB)×768 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 344.232×193.536 mm |
| obrys | 359.3×209.5×5.5 mm |
| tvarový štýl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 170 cd/m² (Typ.) |
| kontrastný pomer | 650:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 3/5 (Typ.)(Tr/Td) |
| pozorovací uhol | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NBPC |
| N156B3-L01 | Innolux | 15.6 | 1366×768 |
| N156B3-L02 | Innolux | 15.6 | 1366×768 |
| N156BGE-E41 | Innolux | 15.6 | 1366×768 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
| N156BGE-L11 | Innolux | 15.6 | 1366×768 |
| N156BGE-L21 | Innolux | 15.6 | 1366×768 |
| N156BGE-L31 | Innolux | 15.6 | 1366×768 |
| N156BGE-L51 | Innolux | 15.6 | 1366×768 |
| N156BGE-L52 | Innolux | 15.6 | 1366×768 |
| N156BGK-E33 | Innolux | 15.6 | 1366×768 |
| B156XTN04.1 | AUO | 15.6 | 1366×768 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| LP154WU1-TLC1 | LG Display | 15.4 | 1920×1200 |
| LP156WF1-TLC1 | LG Display | 15.6 | 1920×1080 |
| LT133EE09C00 | TOSHIBA | 13.3 | 1366×768 |
| LTN140AT18-201 | Samsung | 14.0 | 1366×768 |
| LTN140AT20-301 | Samsung | 14.0 | 1366×768 |
| LTN141AT15-001 | Samsung | 14.1 | 1280×800 |
| LTN170BT09-001 | Samsung | 17.0 | 1440×900 |
| NV133FHM-N43 | BOE | 13.3 | 1920×1080 |
