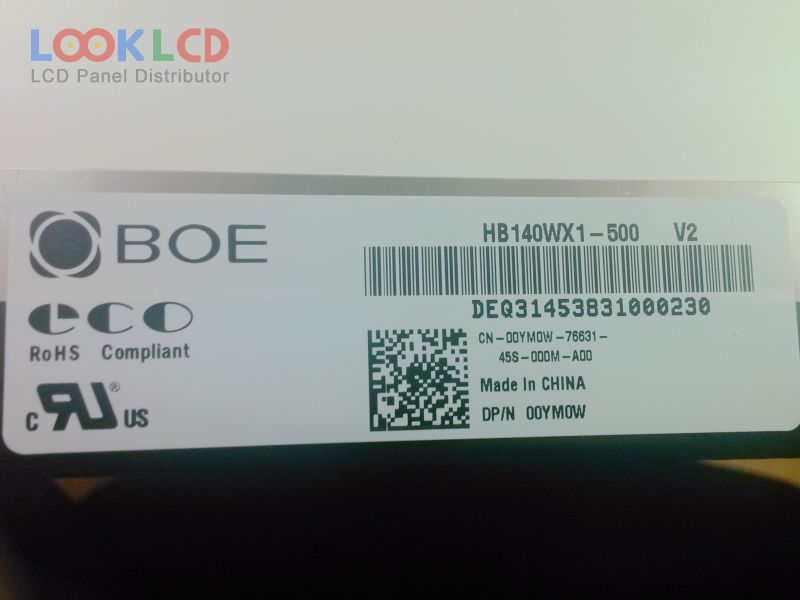

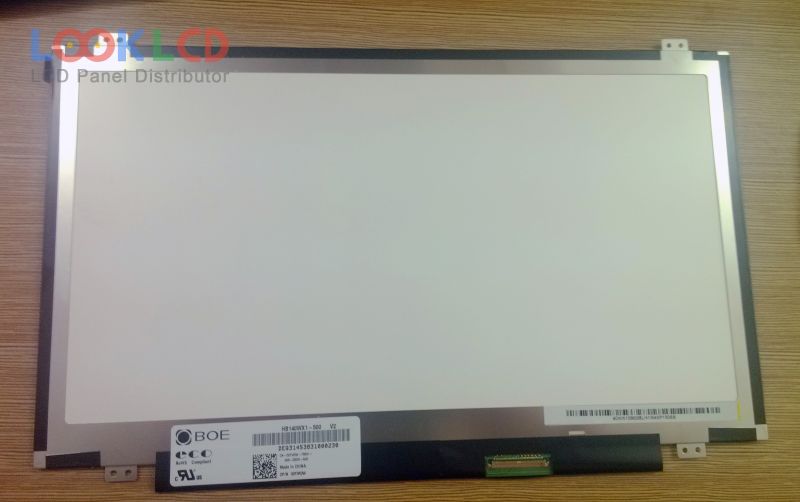

| Číslo dielu | HB140WX1-500 |
| Značka | BOE |
| Veľkosť | 14.0 |
| Aplikácia | NBPC |
| Rozhodnutie | 1366×768 |
| Zloženie | LCM |
| Jas | 200 |
| CR | 600:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | BOE |
| panelový model | HB140WX1-500 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 14.0 inch |
| rozhodnutie | 1366(RGB)×768 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 309.399×173.952 mm |
| obrys | 320.9×187.6×3 mm |
| tvarový štýl | Slim (PCBA Flat, Depth ≤3.2mm) |
| povrch | Hard coating (3H) |
| jas | 200 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 12 (Typ.)(Tr+Td) |
| pozorovací uhol | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 9S4PWLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NBPC |
