| Číslo dielu | N154C1-L01 |
| Značka | Innolux |
| Veľkosť | 15.4 |
| Aplikácia | NBPC |
| Rozhodnutie | 1440×900 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 400:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | CMO |
| panelový model | N154C1-L01 5 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 15.4 inch |
| rozhodnutie | 1440(RGB)×900 , WXGA+ |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 331.56×207.225 mm |
| obrys | 344×222×6.2 mm |
| tvarový štýl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H), Reflection 1.2% (Typ.) |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 400:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193145% |
| Doba odozvy | 8/23 (Typ.)(Tr/Td) |
| pozorovací uhol | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |

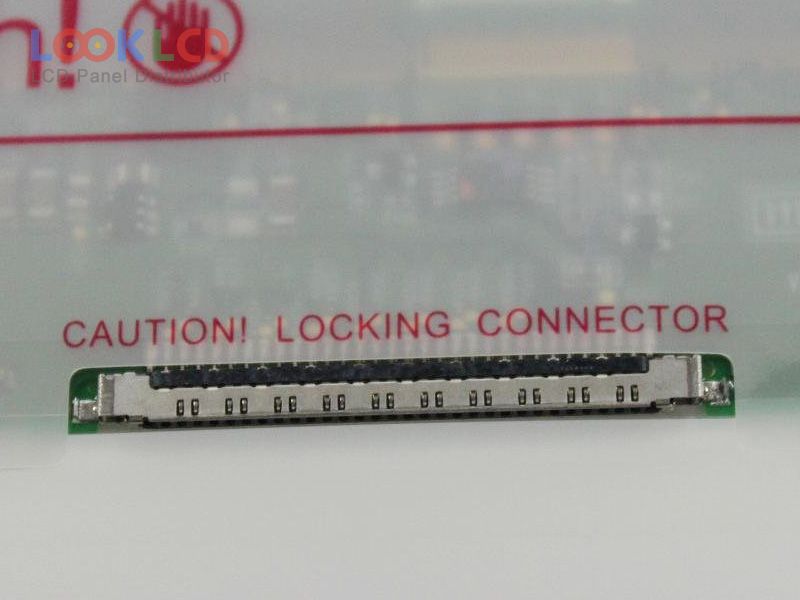

| signálové rozhranie | LVDS (2 ch, 6-bit), 30 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NBPC |
