| Číslo dielu | N140BGE-L31 |
| Značka | Innolux |
| Veľkosť | 14.0 |
| Aplikácia | NBPC |
| Rozhodnutie | 1366×768 |
| Zloženie | LCM |
| Jas | 200 |
| CR | 500:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CHIMEI INNOLUX |

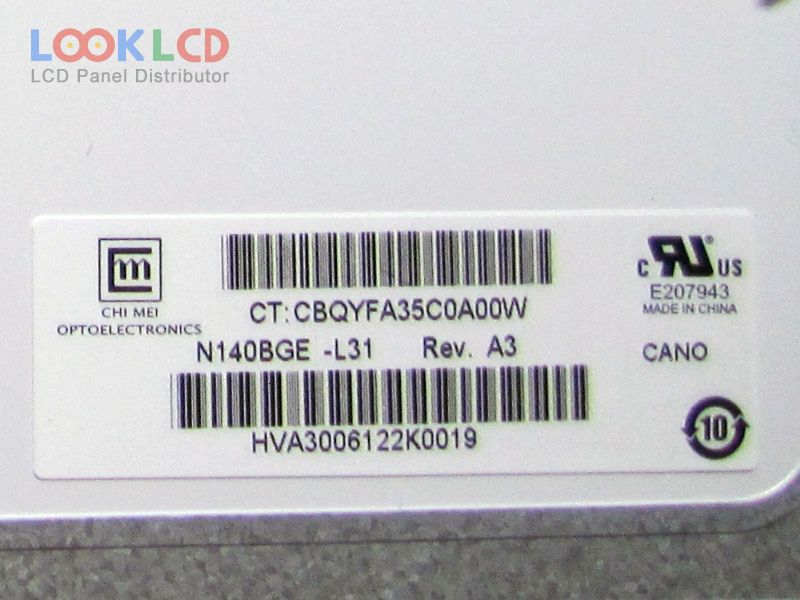

| panelový model | N140BGE-L31 7 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 14.0 inch |
| rozhodnutie | 1366(RGB)×768 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 309.399×173.952 mm |
| obrys | 320.4×205.1×3.6 mm |
| tvarový štýl | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| povrch | Antiglare, Hard coating (3H) |
| jas | 200 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193145% |
| Doba odozvy | 3/8 (Typ.)(Tr/Td) |
| pozorovací uhol | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NBPC |
