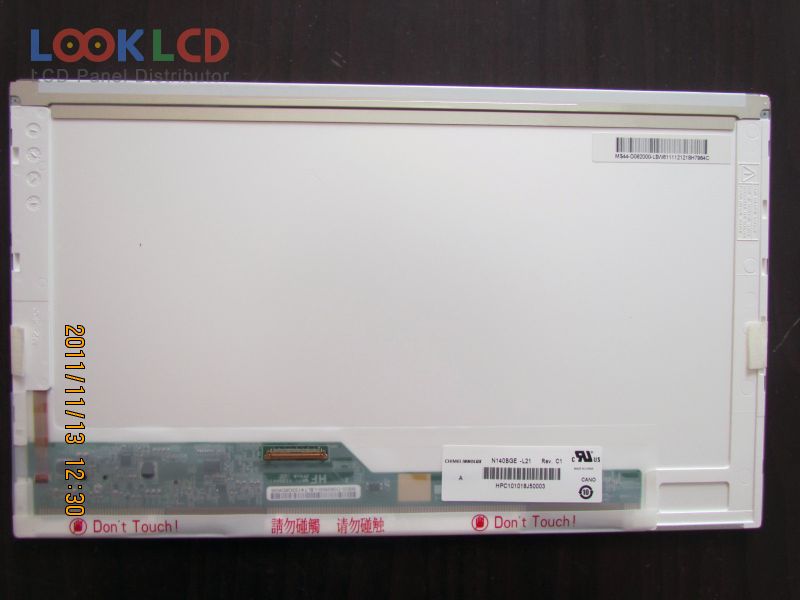

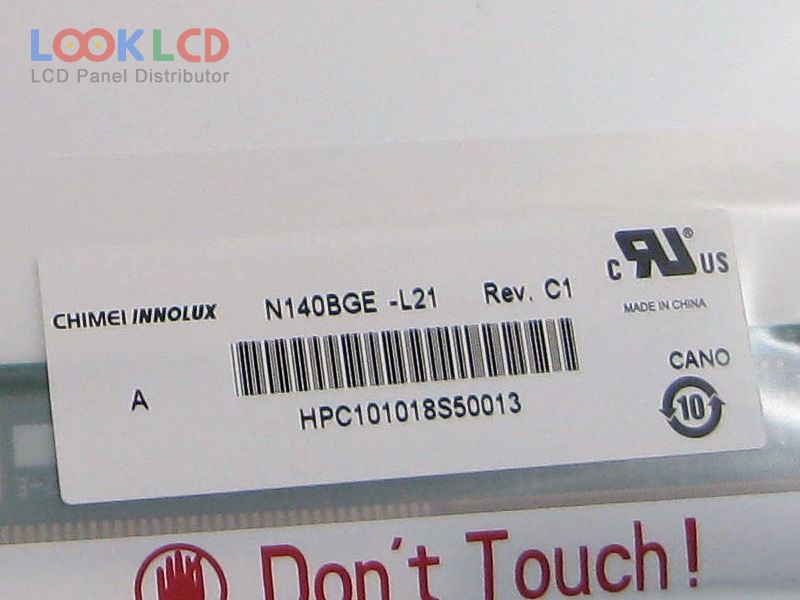

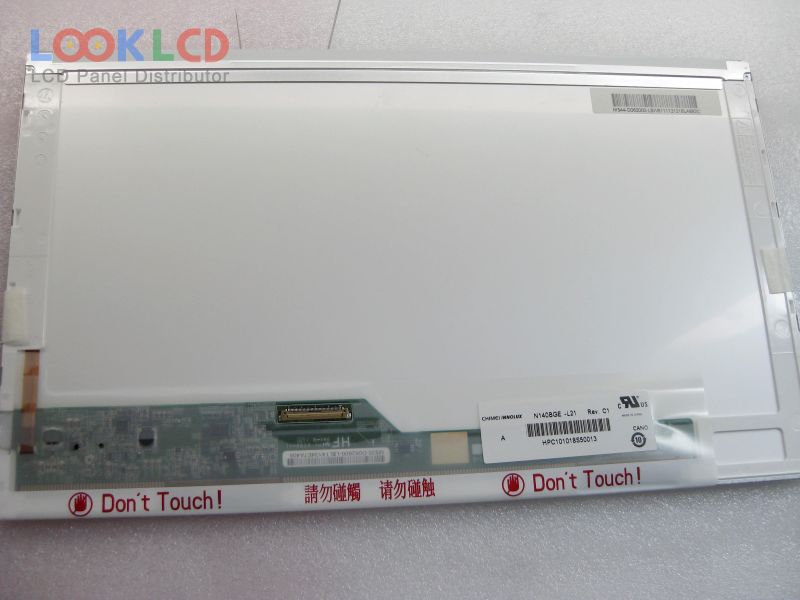

| Číslo dielu | N140BGE-L21 |
| Značka | Innolux |
| Veľkosť | 14.0 |
| Aplikácia | NBPC |
| Rozhodnutie | 1366×768 |
| Zloženie | LCM |
| Jas | 220 |
| CR | 600:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | N140BGE-L21 30 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 14.0 inch |
| rozhodnutie | 1366(RGB)×768 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 309.399×173.952 mm |
| obrys | 323.5×192×5.2 mm |
| tvarový štýl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 220 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193145% |
| Doba odozvy | 3/8 (Typ.)(Tr/Td) |
| pozorovací uhol | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 9S4PWLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NBPC |
| N140B6-D11 | Innolux | 14.0 | 1366×768 |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
| N140BGE-EA3 | Innolux | 14.0 | 1366×768 |
| N140BGE-L11 | Innolux | 14.0 | 1366×768 |
| N140BGE-L22 | Innolux | 14.0 | 1366×768 |
| N140BGE-L31 | Innolux | 14.0 | 1366×768 |
| N140BGE-L32 | Innolux | 14.0 | 1366×768 |
| N140BGE-L33 | Innolux | 14.0 | 1366×768 |
| N140BGE-LB2 | Innolux | 14.0 | 1366×768 |
| N140BGK-L33 | Innolux | 14.0 | 1366×768 |
| B121EW09 V3 HW0A | AUO | 12.1 | 1280×800 |
| B133EW01 V9 | AUO | 13.3 | 1280×800 |
| CLAA156WA11A | CPT | 15.6 | 1366×768 |
| HB133WX1-402 | BOE | 13.3 | 1366×768 |
| LP133WH2-TLL4 | LG Display | 13.3 | 1366×768 |
| LP154WX5-TLC1 | LG Display | 15.4 | 1280×800 |
| LP156WF4-SPU1 | LG Display | 15.6 | 1920×1080 |
| LTD121EWEK | TOSHIBA | 12.1 | 1280×800 |
| N121I3-L03 | Innolux | 12.1 | 1280×800 |
| N156BGE-L51 | Innolux | 15.6 | 1366×768 |
