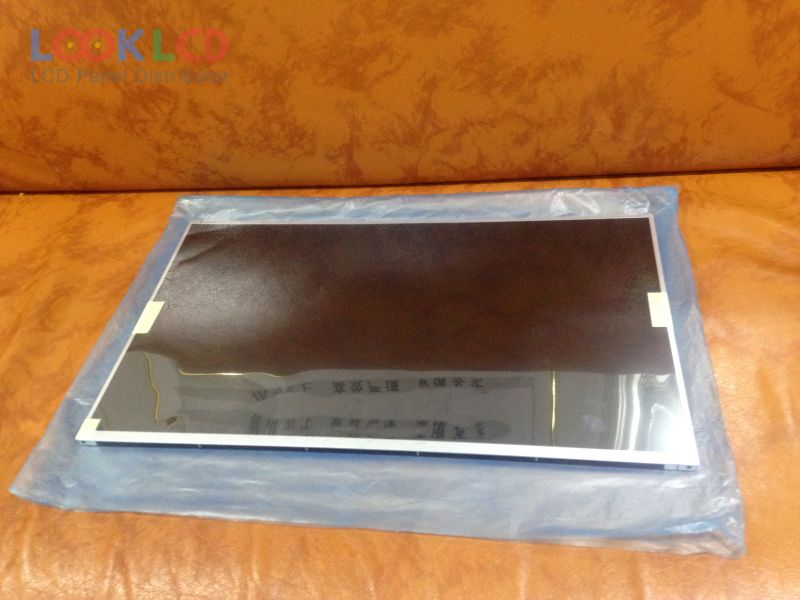

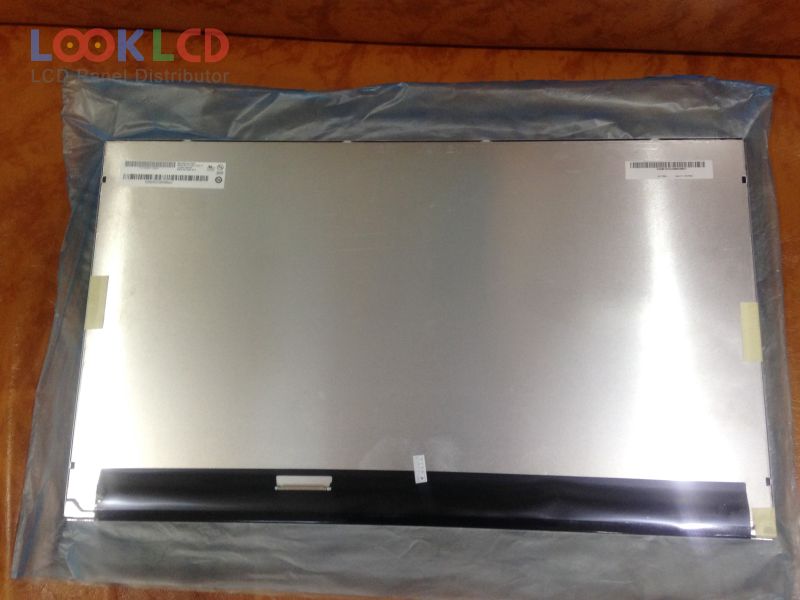

| Číslo dielu | M240HVN02.0 |
| Značka | AUO |
| Veľkosť | 24.0 |
| Aplikácia | DMPC |
| Rozhodnutie | 1920×1080 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 3000:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | AUO |
| panelový model | M240HVN02.0 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 24.0 inch |
| rozhodnutie | 1920(RGB)×1080 , FHD |
| režim zobrazenia | VA, Normally Black, Transmissive |
| aktívna oblasť | 531.36×298.89 mm |
| obrys | 544.8×318.6×10 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 3000:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193172% |
| Doba odozvy | 7/5 (Typ.)(Tr/Td) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 15S4PWLEDWithout Driver |
| signálové rozhranie | LVDS (2 ch, 8-bit), 30 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | DMPC |
