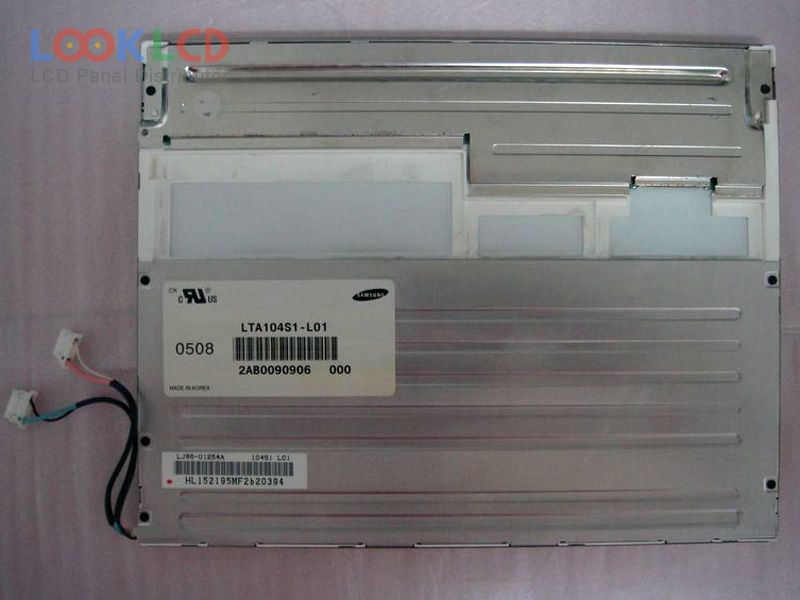

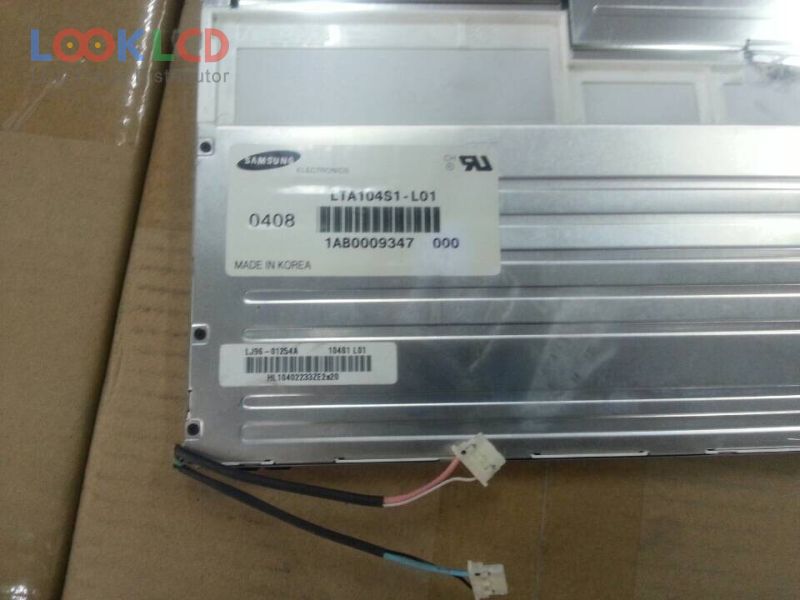

| Číslo dielu | LTA104S1-L01 |
| Značka | Samsung |
| Veľkosť | 10.4 |
| Aplikácia | DPF |
| Rozhodnutie | 800×600 |
| Zloženie | LCM |
| Jas | 350 |
| CR | 150:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTA104S1-L01 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.4 inch |
| rozhodnutie | 800(RGB)×600 , SVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 211.2×158.4 mm |
| obrys | 226×177.8 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastný pomer | 150:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 10/30 (Typ.)(Tr/Td) |
| pozorovací uhol | 50/50/35/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (1 ch, 6-bit), 20 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | DPF |
| AA104SG04 | Mitsubishi | 10.4 | 800×600 |
| B104SN01 V0 | AUO | 10.4 | 800×600 |
| LTA104A261F | TOSHIBA | 10.4 | 640×480 |
| LTA104D182F | TOSHIBA | 10.4 | 800×600 |
| LTA104D183F | TOSHIBA | 10.4 | 800×600 |
| LTA104S1-L01 | Samsung | 10.4 | 800×600 |
| LTA104S2-L01 | Samsung | 10.4 | 800×600 |
| NL6448BC33-46 | NLT | 10.4 | 640×480 |
| NL8060AC26-11 | NLT | 10.4 | 800×600 |
| PD104VT3H1 | E Ink | 10.4 | 640×480 |
| AT070TN84 | Innolux | 7.0 | 800×480 |
| AT080TN01 | Innolux | 8.0 | 800×480 |
| AT080TN03 V.1 | Innolux | 8.0 | 800×480 |
| HSD080IDW1-A00 | HannStar | 8.0 | 800×480 |
| HSD100IFW1-F03 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| LQ090Y3DG01A | SHARP | 9.0 | 800×480 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| P64AN2AP08 | E Ink | 6.4 | 320×234 |
| Q07021-701 | Innolux | 7.0 | 800×600 |
