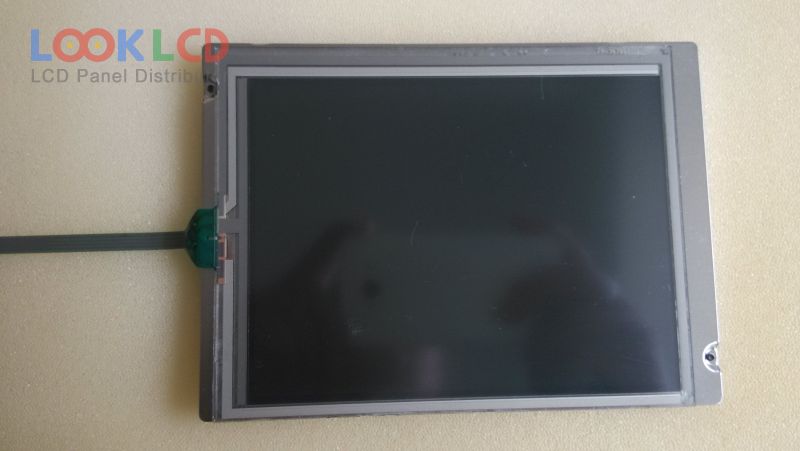

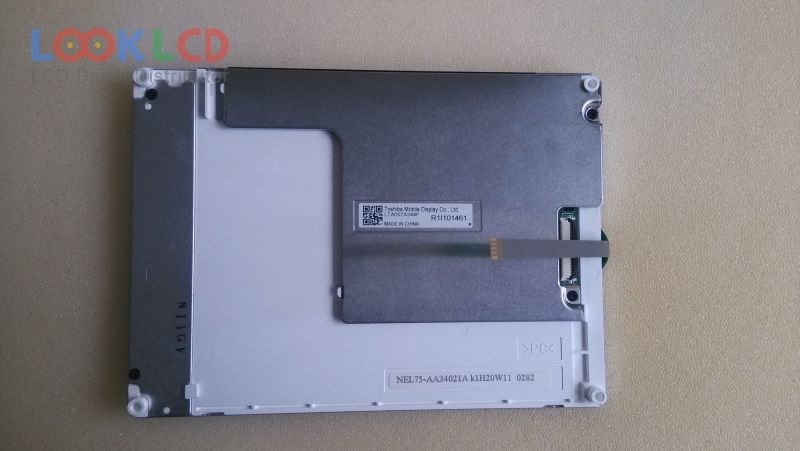

| Číslo dielu | LTA057A344F |
| Značka | TOSHIBA |
| Veľkosť | 5.7 |
| Aplikácia | IA |
| Rozhodnutie | 320×240 |
| Zloženie | LCM |
| Jas | 320 |
| CR | 500:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | Toshiba Matsushita |
| panelový model | LTA057A344F |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 5.7 inch |
| rozhodnutie | 320(RGB)×240 , QVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 115.2×86.4 mm |
| obrys | 144×104.6×10 mm |
| povrch | |
| jas | 320 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 50/50 (Max.)(Tr/Td) |
| pozorovací uhol | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 6S3PWLEDWithout Driver |
| signálové rozhranie | CMOS (1 ch, 6-bit), 33 pins |
| vstupné napätie | 3.3V (Typ.)(VDD) |
| aplikácie | IA |
| G057AGE-T01 | Innolux | 5.7 | 320×240 |
| KCG057QV1DB-G500 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G04 | Kyocera | 5.7 | 320×240 |
| LTA055B0R0A | TOSHIBA | 5.5 | 480×234 |
| LTA057A340F | TOSHIBA | 5.7 | 320×240 |
| LTA057A341F | TOSHIBA | 5.7 | 320×240 |
| LTA057A344F | TOSHIBA | 5.7 | 320×240 |
| LTA057A347F | TOSHIBA | 5.7 | 320×240 |
| LTA057A349F | TOSHIBA | 5.7 | 320×240 |
| SH320240C | Other | 5.7 | 320×240 |
| G150XTN06.4 | AUO | 15.0 | 1024×768 |
| HSD121MS11-A | HannStar | 12.1 | 800×600 |
| LQ9D01C | SHARP | 8.4 | 640×480 |
| NL128102AC29-17 | NLT | 19.0 | 1280×1024 |
| NL6448AC33-15 | NLT | 10.4 | 640×480 |
| NL8060BC31-17 | NLT | 12.1 | 800×600 |
| RGS15128128YR000 | RiTdisplay | 1.5 | 128×128 |
| RGS31256032WH000 | RiTdisplay | 3.1 | 256×32 |
| TCG121WXLPAPNN-AN20 | Kyocera | 12.1 | 1280×800 |
| TX16D18VM2CAB | KOE | 6.2 | 800×300 |
