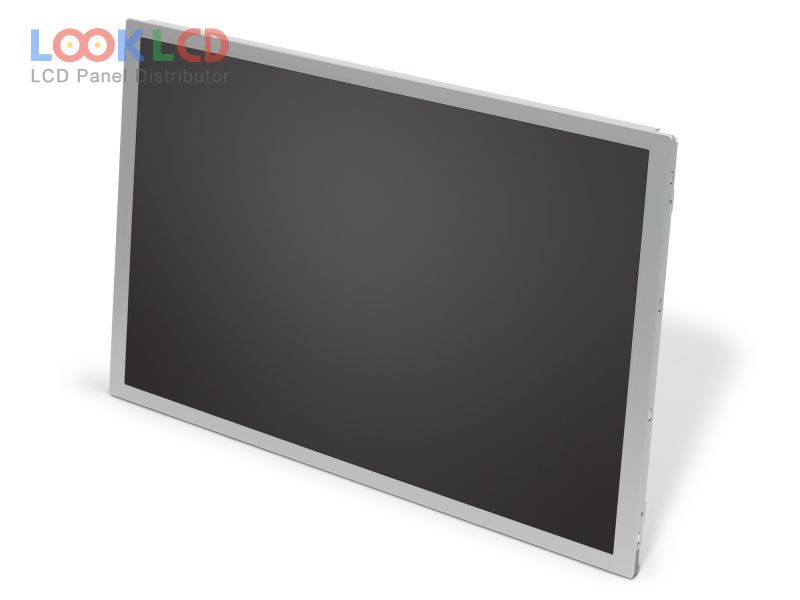

| Číslo dielu | LQ190N1LW01 |
| Značka | SHARP |
| Veľkosť | 19.0 |
| Aplikácia | IA |
| Rozhodnutie | 1680×1050 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 900:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | SHARP |
| panelový model | LQ190N1LW01 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 19.0 inch |
| rozhodnutie | 1680(RGB)×1050 , WSXGA+ |
| režim zobrazenia | VA, Normally Black, Transmissive |
| aktívna oblasť | 409.5×255.94 mm |
| obrys | 444×283.3×16 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 900:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193170% |
| Doba odozvy | 35 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (2 ch, 8-bit), 30 pins |
| vstupné napätie | 12.0V (Typ.) |
| aplikácie | IA |
