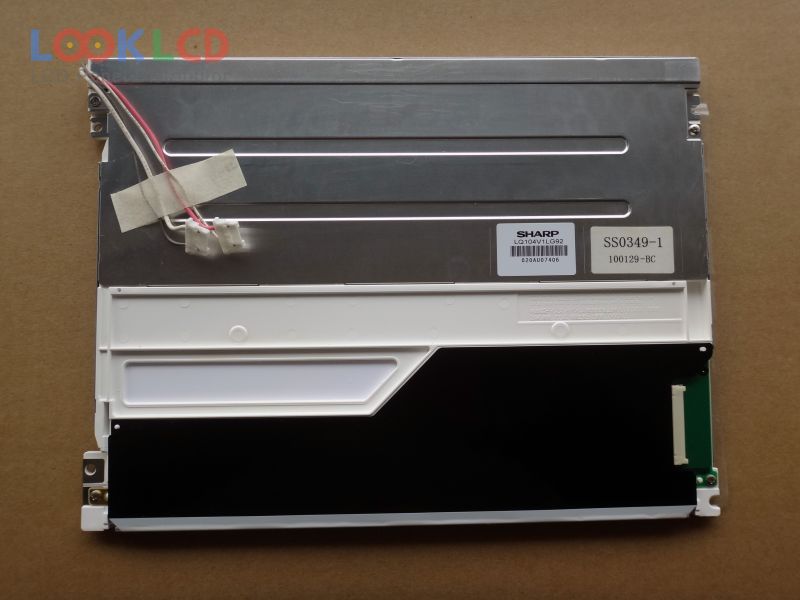

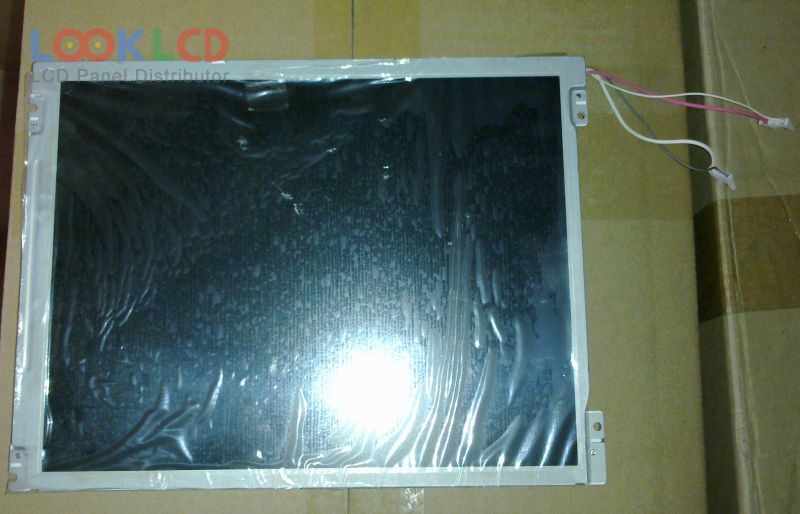

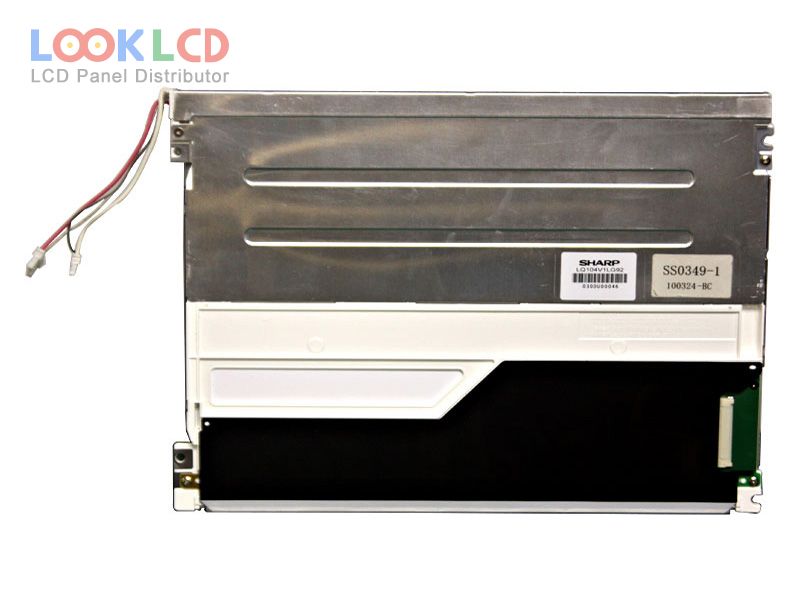

| Číslo dielu | LQ104V1LG92 |
| Značka | SHARP |
| Veľkosť | 10.4 |
| Aplikácia | GM |
| Rozhodnutie | 640×480 |
| Zloženie | LCM |
| Jas | 330 |
| CR | |
| Farby | 16.7M |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | SHARP |
| panelový model | LQ104V1LG92 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.4 inch |
| rozhodnutie | 640(RGB)×480 , VGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 211.2×158.4 mm |
| obrys | 240×179.2 mm |
| povrch | |
| jas | 330 cd/m² (Typ.) |
| kontrastný pomer | |
| zobraziť farby | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Doba odozvy | |
| pozorovací uhol | |
| frekvencia | 60Hz |
| typ lampy | 2 pcsCCFL |
| signálové rozhranie | LVDS (1 ch, 8-bit) |
| aplikácie | GM |
| LQ104S1DG21 | SHARP | 10.4 | 800×600 |
| LQ104S1DG2A | SHARP | 10.4 | 800×600 |
| LQ104S1DG31 | SHARP | 10.4 | 800×600 |
| LQ104S1LG61 | SHARP | 10.4 | 800×600 |
| LQ104S1LG81 | SHARP | 10.4 | 800×600 |
| LQ104V1DG21 | SHARP | 10.4 | 640×480 |
| LQ104V1DG5A | SHARP | 10.4 | 640×480 |
| LQ104V1DG83 | SHARP | 10.4 | 640×480 |
| LQ104V1LG92 | SHARP | 10.4 | 640×480 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| G104X1-L02 | Innolux | 10.4 | 1024×768 |
| G230HAN01.1 | AUO | 23.0 | 1920×1080 |
| LM215WF3-SLK1 | LG Display | 21.5 | 1920×1080 |
| LQ110Y3DG01 | SHARP | 11.0 | 800×480 |
| LQ121S1LG73 | SHARP | 12.1 | 800×600 |
| LQ121S1LG75 | SHARP | 12.1 | 800×600 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| LQ190E1LC06 | SHARP | 19.0 | 1280×1024 |
| LQ6BN01 | SHARP | 5.6 | 320×240 |
| LTA170D200F | TOSHIBA | 17.0 | 1280×1024 |
