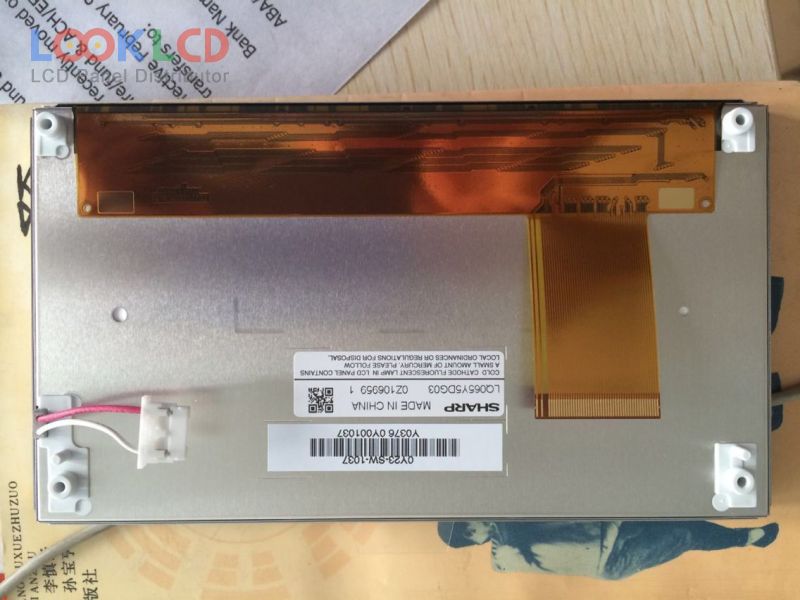

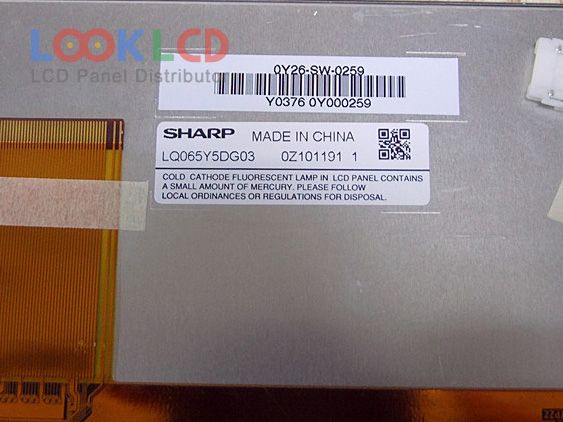

| Číslo dielu | LQ065Y5DG03 |
| Značka | SHARP |
| Veľkosť | 6.5 |
| Aplikácia | CNS |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 500 |
| CR | 300:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | TTL |
| značka panelu | SHARP |
| panelový model | LQ065Y5DG03 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 6.5 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 144×79.24 mm |
| obrys | 157.4×89.7×12.6 mm |
| povrch | Antiglare, Antireflection |
| jas | 500 cd/m² (Typ.) |
| kontrastný pomer | 300:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 10/16 (Typ.)(Tr/Td) |
| pozorovací uhol | 60/60/40/55 (Typ.)(CR≥5)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 6-bit), 50 pins |
| vstupné napätie | 5.3/3.3/15/-12V (Typ.)(VSHA/VSHD/VDD/VEEDC) |
| aplikácie | CNS |
