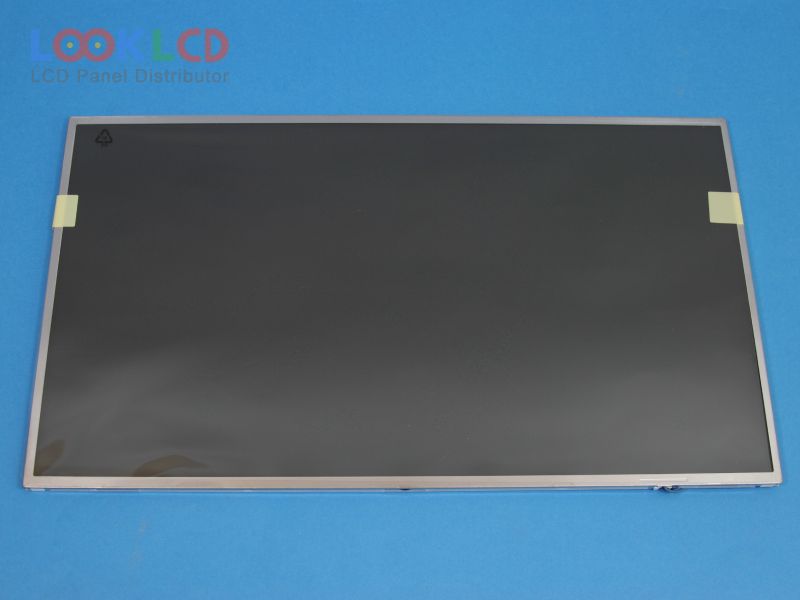

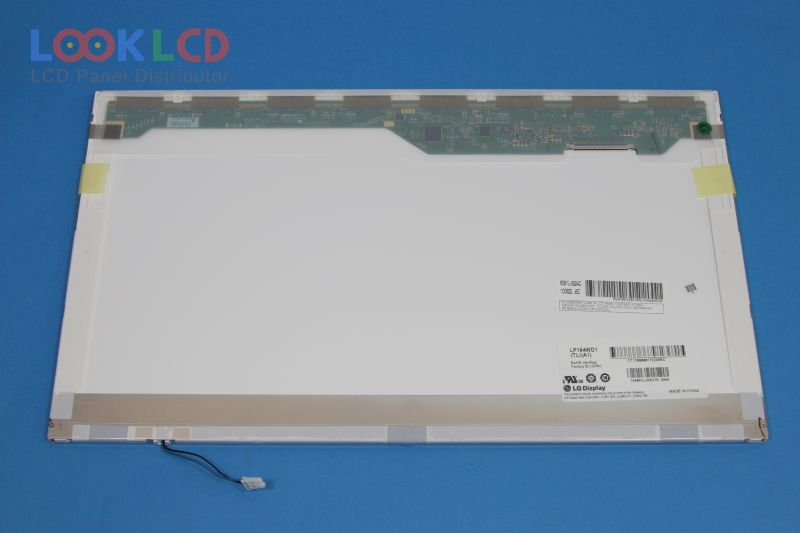

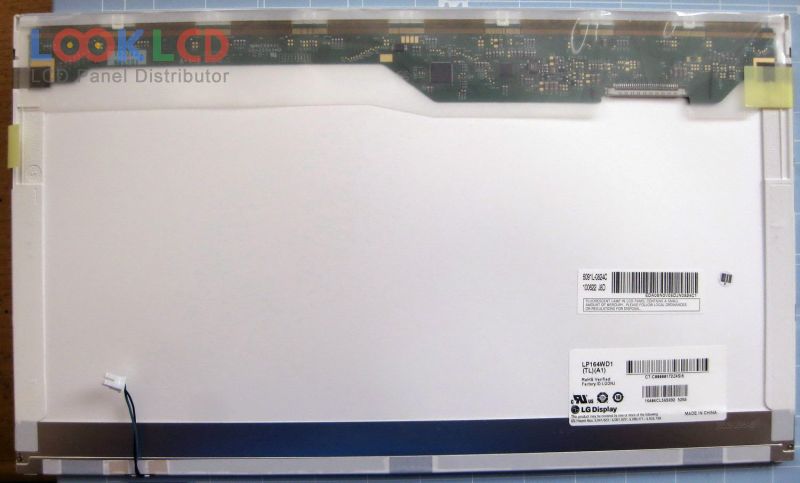

| Číslo dielu | LP164WD1-TLA1 |
| Značka | LG Display |
| Veľkosť | 16.4 |
| Aplikácia | NBPC |
| Rozhodnutie | 1600×900 |
| Zloženie | LCM |
| Jas | 200 |
| CR | 600:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | LG Display |
| panelový model | LP164WD1-TLA1 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 16.4 inch |
| rozhodnutie | 1600(RGB)×900 , HD+ |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 362.4×203.85 mm |
| obrys | 375×219.1×6.5 mm |
| tvarový štýl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H), Reflection 5.0% (Max.) |
| jas | 200 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193145% |
| Doba odozvy | 5.5/10.5 (Typ.)(Tr/Td) |
| pozorovací uhol | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (2 ch, 6-bit), 30 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NBPC |
