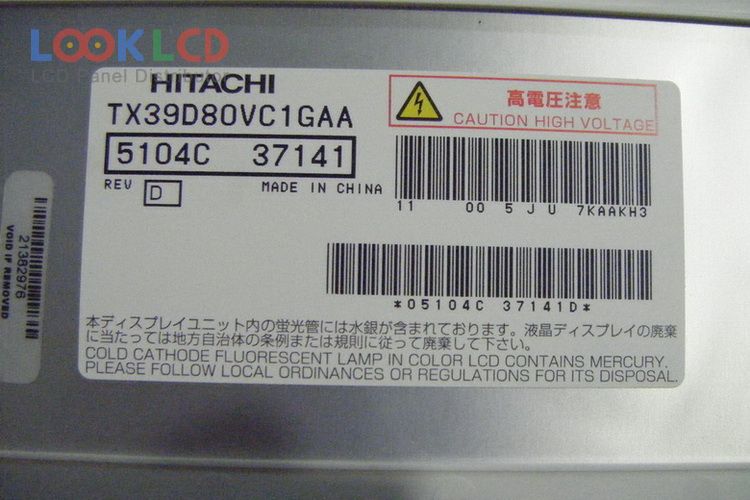

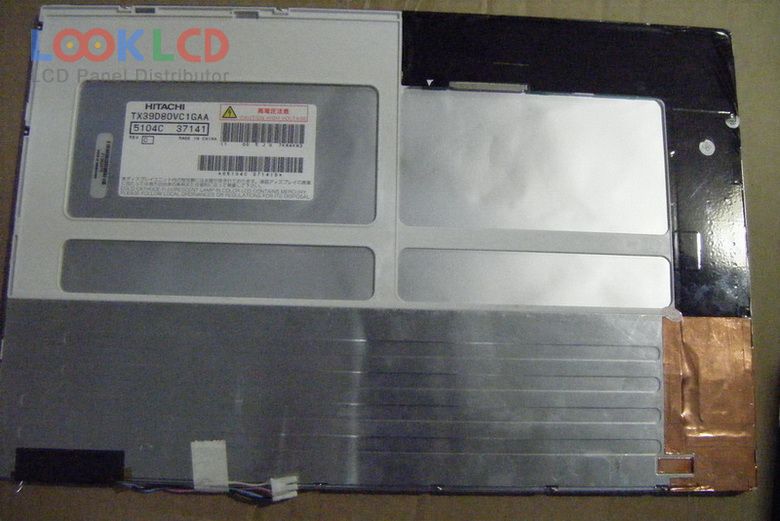

| Číslo dielu | TX39D80VC1GAA |
| Značka | KOE |
| Veľkosť | 15.4 |
| Aplikácia | NBPC |
| Rozhodnutie | 1280×800 |
| Zloženie | LCM |
| Jas | 480 |
| CR | 600:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | HITACHI |
| panelový model | TX39D80VC1GAA |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 15.4 inch |
| rozhodnutie | 1280(RGB)×800 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 331.2×207 mm |
| obrys | 344×225 mm |
| povrch | Glare (Haze 0%) |
| jas | 480 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Min.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 50 (Typ.)(Tr+Td) |
| pozorovací uhol | |
| frekvencia | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (1 ch, 6-bit) |
| vstupné napätie | 3.3V (Typ.) |
| rohs: | |
| aplikácie | NBPC |
| B154PW01 V0 | AUO | 15.4 | 1440×900 |
| LP154W01-TLAD | LG Display | 15.4 | 1280×800 |
| LP154W02-B1K2 | LG Display | 15.4 | 1680×1050 |
| LP154WX4-TLC5 | LG Display | 15.4 | 1280×800 |
| LTN154P3-L02 | Samsung | 15.4 | 1680×1050 |
| LTN154X3-L09-G | Samsung | 15.4 | 1280×800 |
| N154I2-L01 | Innolux | 15.4 | 1280×800 |
| N154Z1-L02 | Innolux | 15.4 | 1680×1050 |
| TX39D01VM1BAA | KOE | 15.4 | 1280×768 |
| TX39D80VC1GAA | KOE | 15.4 | 1280×800 |
| B140HAN01.8 | AUO | 14.0 | 1920×1080 |
| B140RTN02.3 | AUO | 14.0 | 1600×900 |
| B141XG10 V0 | AUO | 14.1 | 1024×768 |
| BT156GW01 V.4 | Innolux | 15.6 | 1366×768 |
| LP121X1-A2M1 | LG Display | 12.1 | 1024×768 |
| LP133WH2-TLB2 | LG Display | 13.3 | 1366×768 |
| LP156WH2-TLA1 | LG Display | 15.6 | 1366×768 |
| LP171WP4-TLQ2 | LG Display | 17.1 | 1440×900 |
| LTN154BT05-001 | Samsung | 15.4 | 1440×900 |
| LTN170WA-L01 | Samsung | 17.0 | 1440×900 |
