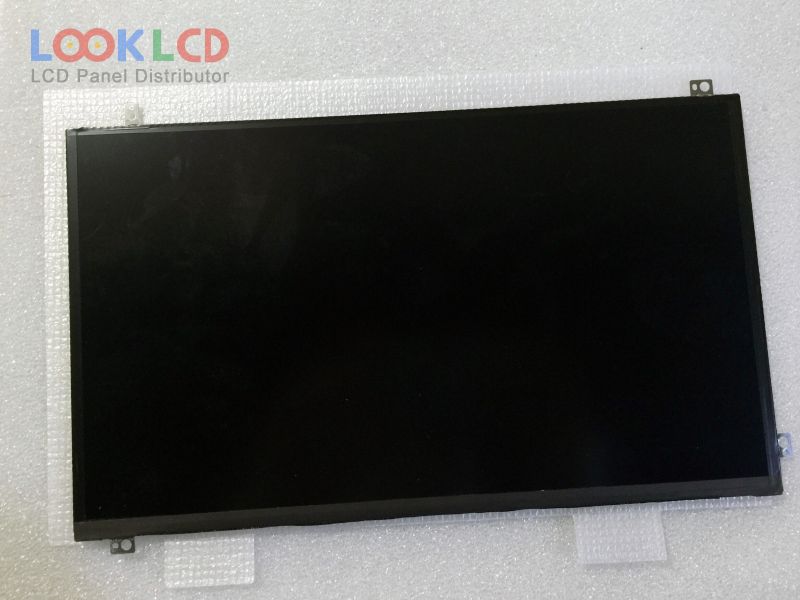

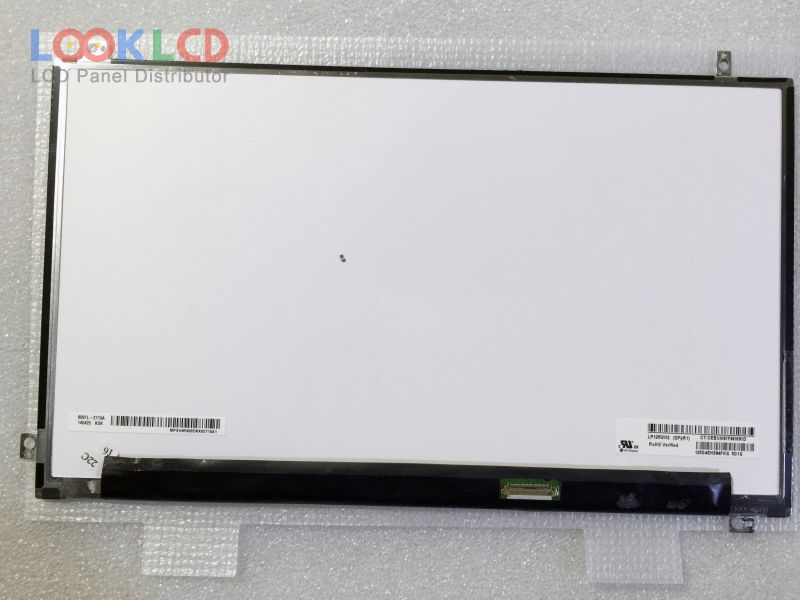

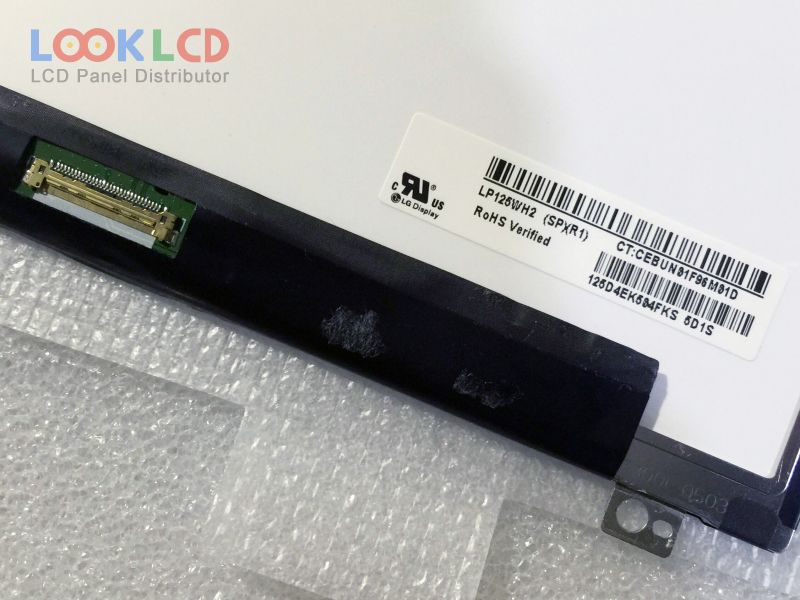

| Číslo dielu | LP125WH2-SPR1 |
| Značka | LG Display |
| Veľkosť | 12.5 |
| Aplikácia | PAD |
| Rozhodnutie | 1366×768 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 500:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | eDP |
| značka panelu | LG Display |
| panelový model | LP125WH2-SPR1 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 12.5 inch |
| rozhodnutie | 1366(RGB)×768 , WXGA |
| režim zobrazenia | AH-IPS, Normally Black, Transmissive |
| aktívna oblasť | 275.59×154.94 mm |
| povrch | |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Min.) |
| zobraziť farby | 262K (6-bit), CIE193150% |
| Doba odozvy | 35 (Typ.)(Tr+Td) |
| pozorovací uhol | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | eDP (1 Lane) |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | PAD |
