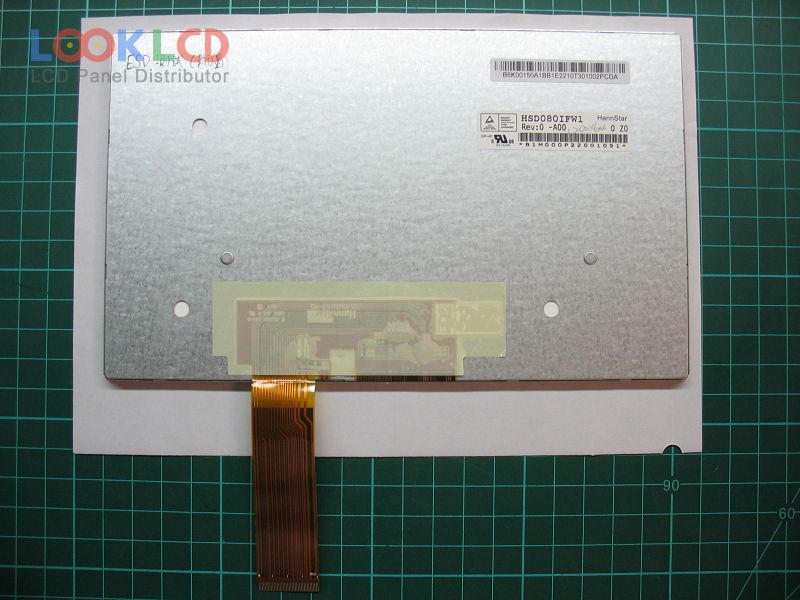

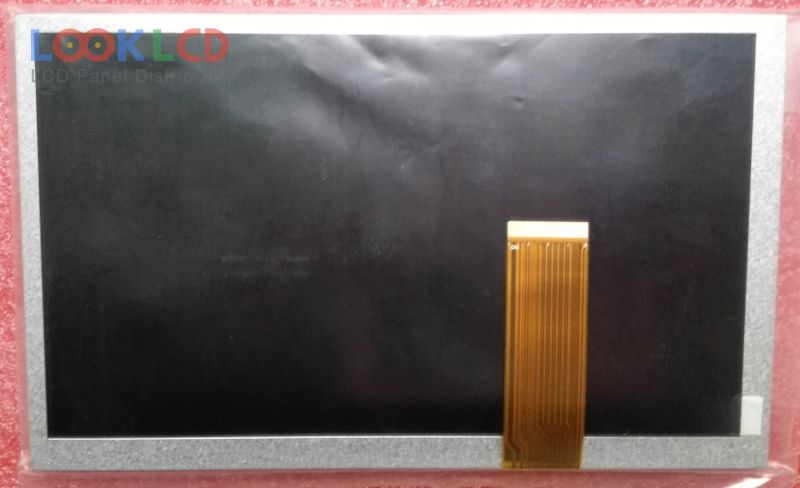

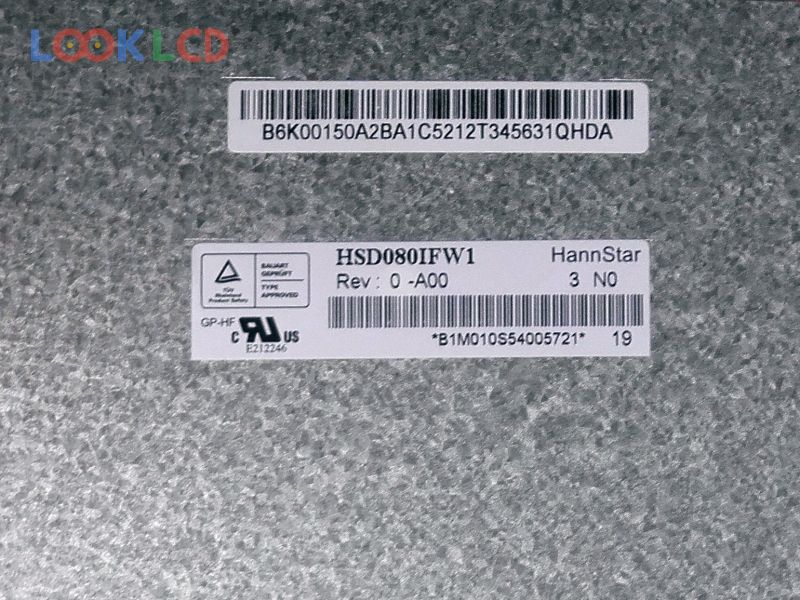

| Číslo dielu | HSD080IFW1-A00 |
| Značka | HannStar |
| Veľkosť | 8.0 |
| Aplikácia | CNS |
| Rozhodnutie | 1024×600 |
| Zloženie | LCM |
| Jas | 600 |
| CR | 800:1 |
| Farby | 262K/16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | HannStar |
| panelový model | HSD080IFW1-A00 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 8.0 inch |
| rozhodnutie | 1024(RGB)×600 , WSVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 176.64×99.36 mm |
| obrys | 192.8×116.9×4.7 mm |
| povrch | |
| jas | 600 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odozvy | 4/12 (Typ.)(Tr/Td) |
| pozorovací uhol | 80/80/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S13PWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 40 pins |
| vstupné napätie | 3.3/11.0/18.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikácie | CNS |
