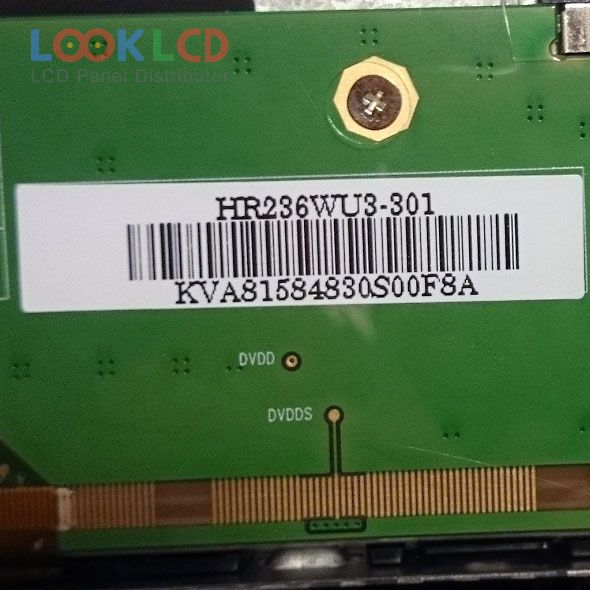

| Číslo dielu | HR236WU3-301 |
| Značka | BOE |
| Veľkosť | 23.6 |
| Aplikácia | DMPC |
| Rozhodnutie | 1920×1080 |
| Zloženie | CELL |
| Jas | 0 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | No B/L |
| Rozhranie | LVDS |
| značka panelu | BOE |
| panelový model | HR236WU3-301 |
| typ panelu | a-Si TFT-LCD , CELL |
| veľkosť panelu | 23.6 inch |
| rozhodnutie | 1920(RGB)×1080 , FHD |
| režim zobrazenia | ADS, Normally Black, Transmissive |
| aktívna oblasť | 521.28×293.22 mm |
| obrys | 535.9×307 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| hĺbka skla | 0.50+0.50 mm |
| priepustnosť | 4.35% (Typ.)(with Polarizer) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC) |
| Doba odozvy | 14 (Typ.)(G to G) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| signálové rozhranie | LVDS (2 ch, 8-bit), 30 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | DMPC |
