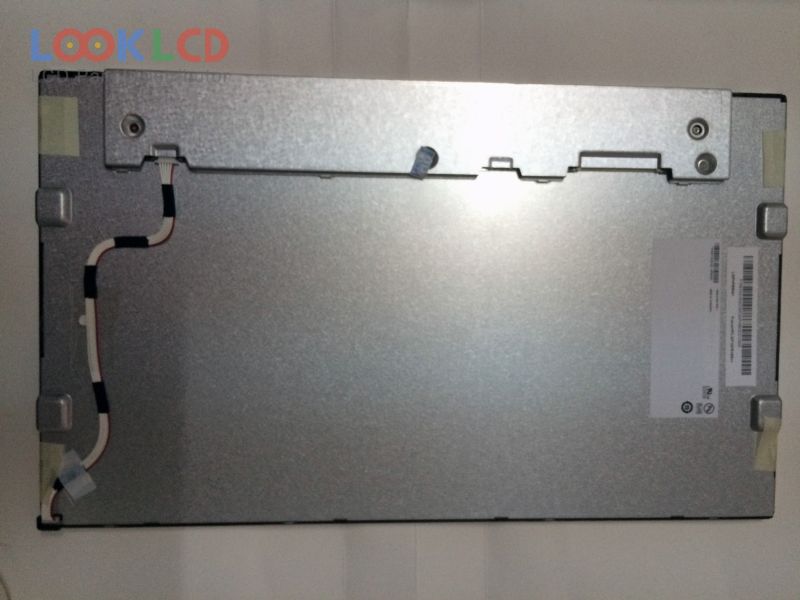

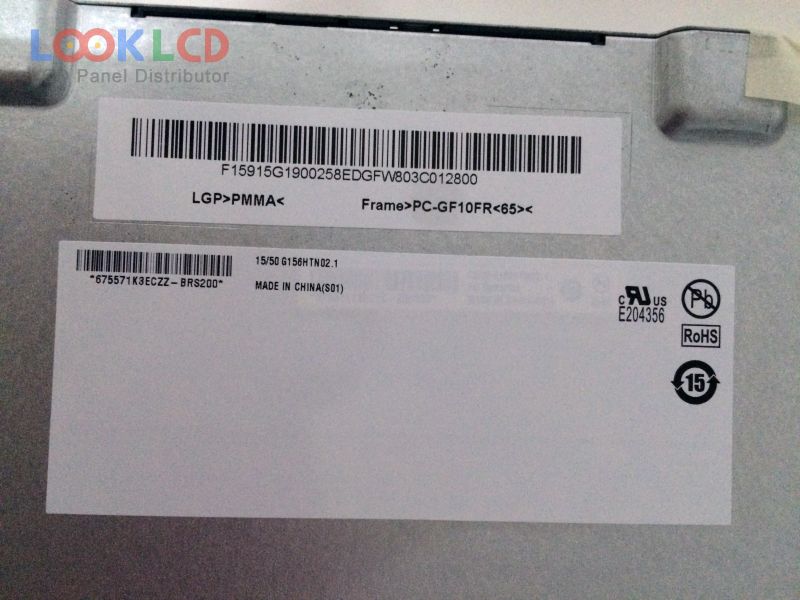

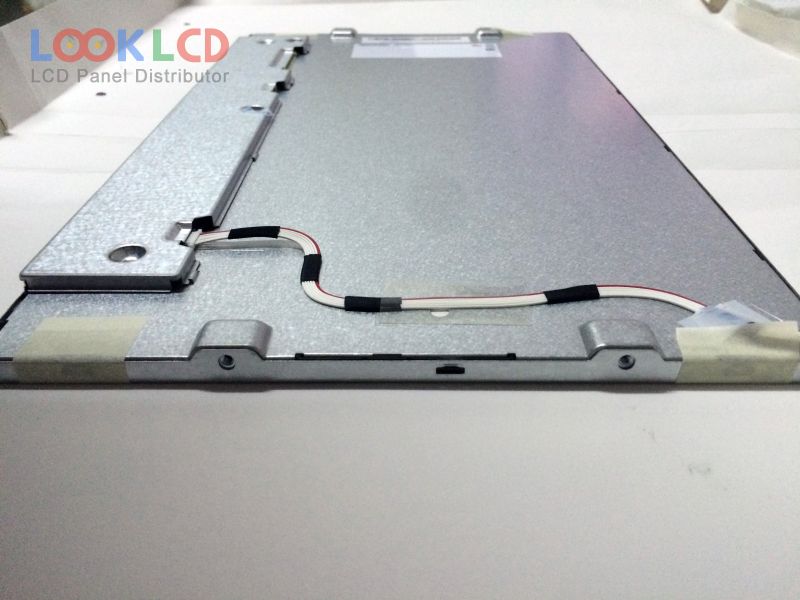

| Číslo dielu | G156HTN02.1 |
| Značka | AUO |
| Veľkosť | 15.6 |
| Aplikácia | IA |
| Rozhodnutie | 1920×1080 |
| Zloženie | LCM |
| Jas | |
| CR | 700:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | AUO |
| panelový model | G156HTN02.1 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 15.6 inch |
| rozhodnutie | 1920(RGB)×1080 , FHD |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 344.16×193.59 mm |
| obrys | 363.8×215.9×9.8 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193172% |
| Doba odozvy | 8 (Typ.)(Tr+Td) |
| pozorovací uhol | 80/80/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (2 ch, 8-bit), 30 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | IA |
