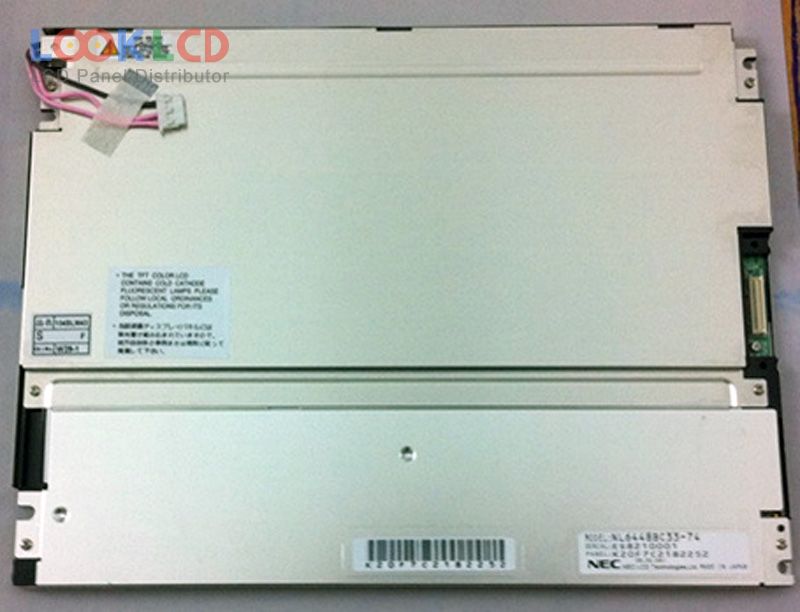

| Číslo dielu | NL6448BC33-74 |
| Značka | NLT |
| Veľkosť | 10.4 |
| Aplikácia | IA |
| Rozhodnutie | 640×480 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 800:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | TTL |
| značka panelu | NEC |
| panelový model | NL6448BC33-74 3 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.4 inch |
| rozhodnutie | 640(RGB)×480 , VGA |
| režim zobrazenia | SA-SFT, Normally Black, Transmissive |
| aktívna oblasť | 211.2×158.4 mm |
| obrys | 243×185.1×11 mm |
| povrch | Clear, Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193150% |
| Doba odozvy | 14/16 (Typ.)(Tr/Td) |
| pozorovací uhol | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhranie | CMOS (1 ch, 6-bit), 31 pins |
| vstupné napätie | 3.3/5.0V (Typ.) |
| aplikácie | IA |
