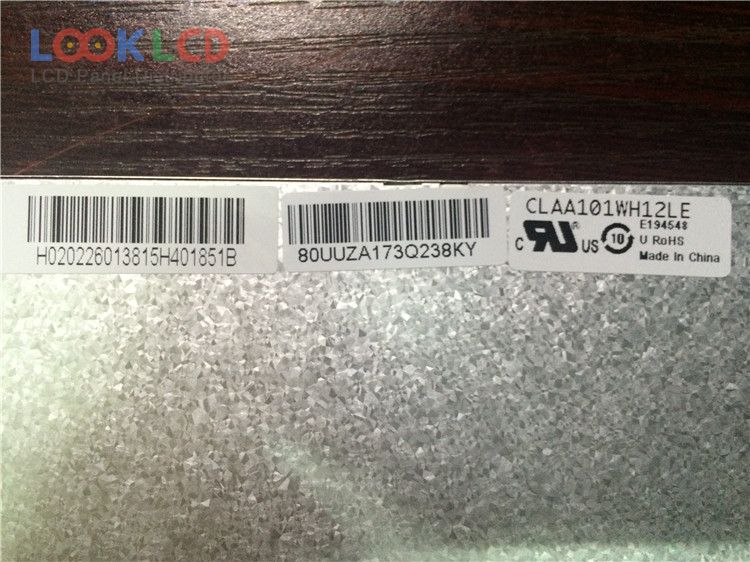

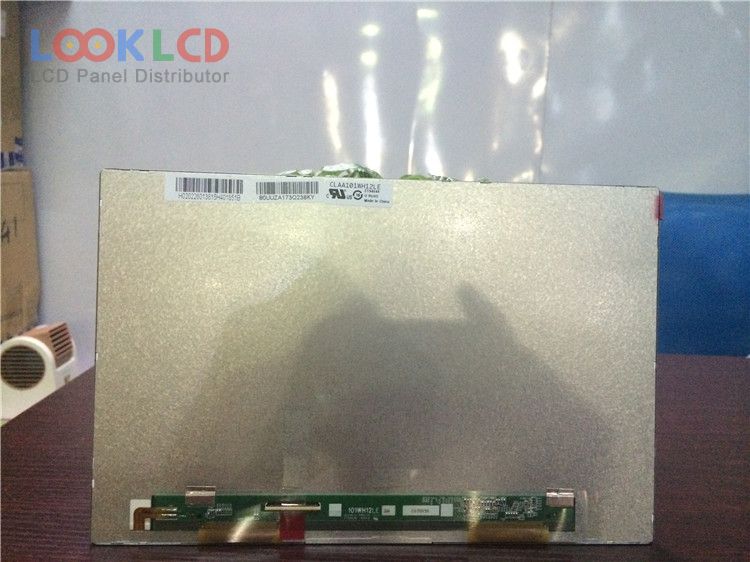

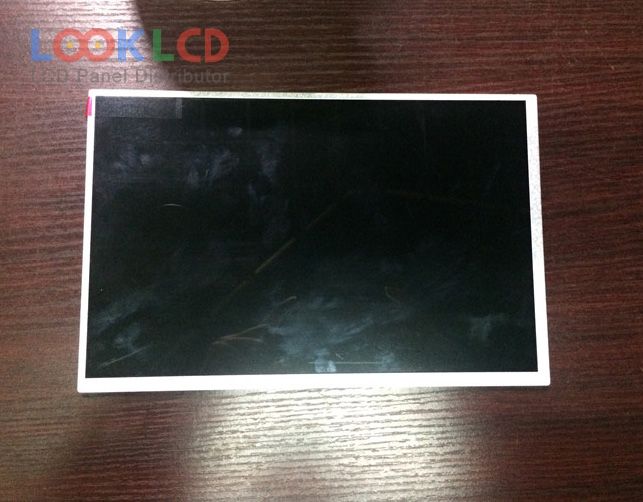

| Číslo dielu | CLAA101WH12 LE |
| Značka | CPT |
| Veľkosť | 10.1 |
| Aplikácia | PAD |
| Rozhodnutie | 1280×800 |
| Zloženie | LCM |
| Jas | 350 |
| CR | 600:1 |
| Farby | 262K/16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CPT |
| panelový model | CLAA101WH12 LE |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.1 inch |
| rozhodnutie | 1280(RGB)×800 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 216.96×135.6 mm |
| obrys | 222.46×149.1×4.96 mm |
| povrch | Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S12PWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 8-bit), 40 pins |
| vstupné napätie | 3.3/11/21.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikácie | PAD |
