| Číslo dielu | AA104VC04 |
| Značka | Mitsubishi |
| Veľkosť | 10.4 |
| Aplikácia | IA |
| Rozhodnutie | 640×480 |
| Zloženie | LCM |
| Jas | 430 |
| CR | 500:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | TTL |
| značka panelu | Mitsubishi |
| panelový model | AA104VC04 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.4 inch |
| rozhodnutie | 640(RGB)×480 , VGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 211.2×158.4 mm |
| obrys | 243×181.6×12.7 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 430 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 6/19 (Typ.)(Tr/Td) |
| pozorovací uhol | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |

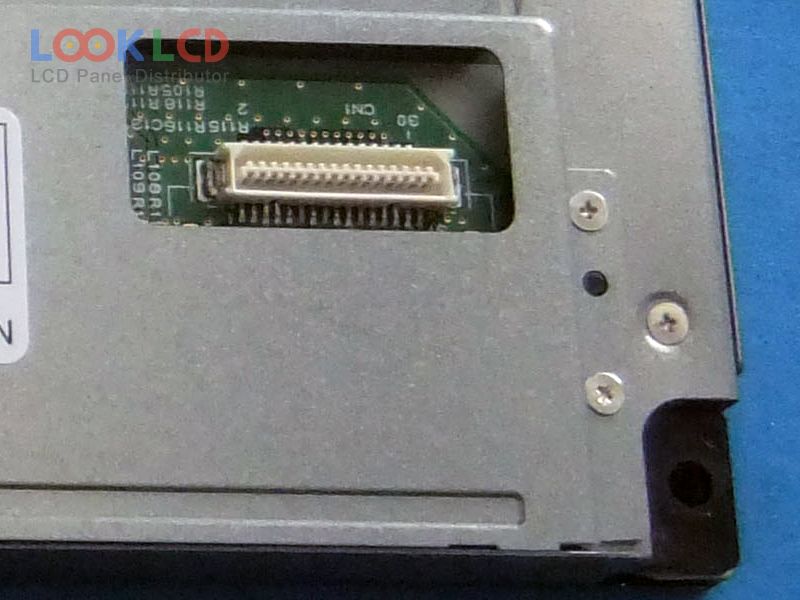

| signálové rozhranie | CMOS (1 ch, 6-bit), 31 pins |
| vstupné napätie | 3.3V (Typ.)(VCC) |
| aplikácie | IA |
