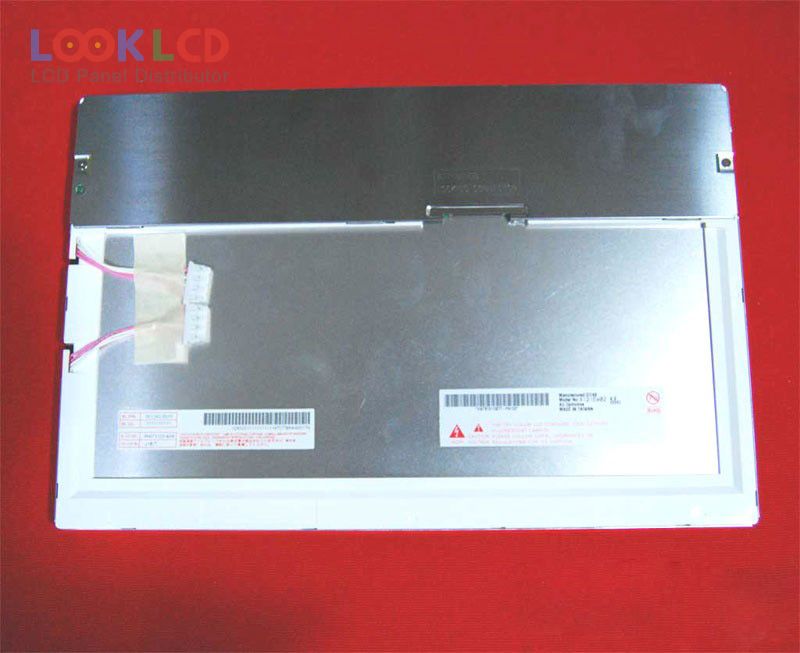

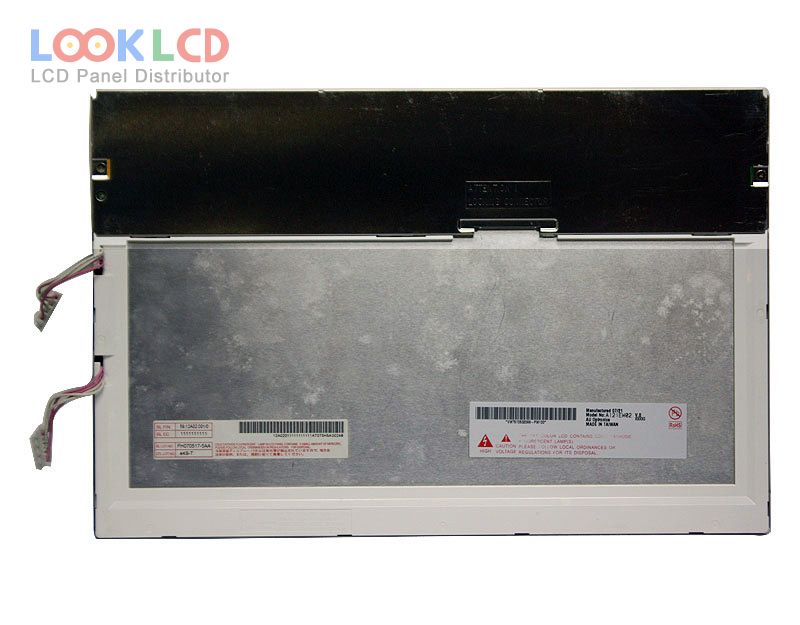

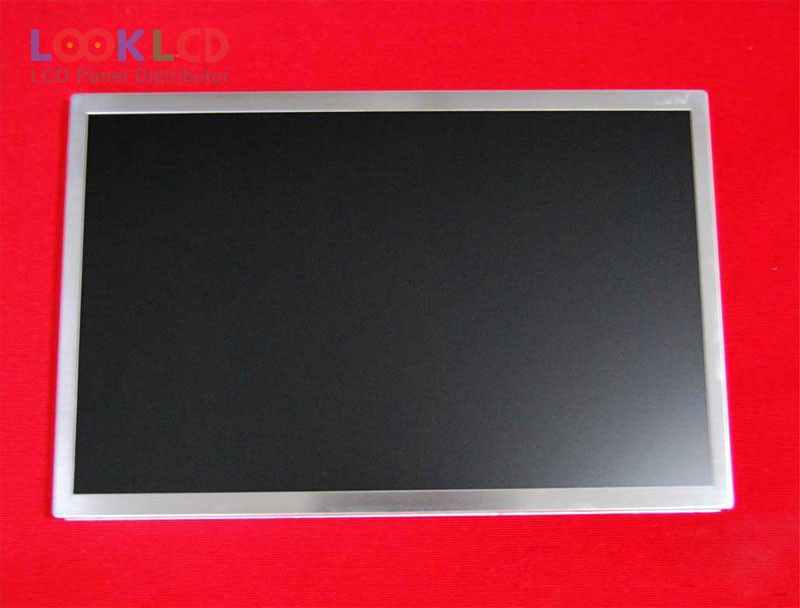

| Číslo dielu | A121EW02 V0 |
| Značka | AUO |
| Veľkosť | 12.1 |
| Aplikácia | GM |
| Rozhodnutie | 1280×800 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 350:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | AUO |
| panelový model | A121EW02 V0 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 12.1 inch |
| rozhodnutie | 1280(RGB)×800 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 261.12×163.2 mm |
| obrys | 278.2×184×14.1 mm |
| povrch | |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 350:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 12/18 (Typ.)(Tr/Td) |
| pozorovací uhol | 65/65/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (1 ch, 6-bit), 20 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | GM |
| A121EW02 V0 | AUO | 12.1 | 1280×800 |
| BA121S01-100 | BOE | 12.1 | 800×600 |
| CLAA121UA01CW | CPT | 12.1 | 1600×900 |
| G121S1-L02 | Innolux | 12.1 | 800×600 |
| LQ121S1LG74A | SHARP | 12.1 | 800×600 |
| LT121DEVPK00 | TOSHIBA | 12.1 | 1280×800 |
| LT121EE01000 | TOSHIBA | 12.1 | 1280×800 |
| LTA121C250F | TOSHIBA | 12.1 | 1024×768 |
| NL8060BC31-20 | NLT | 12.1 | 800×600 |
| NL8060BC31-47D | NLT | 12.1 | 800×600 |
| A080XN01 V1 | AUO | 8.0 | 1024×768 |
| G154I1-LE1 | Innolux | 15.4 | 1280×800 |
| LQ061Y1VG01 | SHARP | 6.1 | 800×480 |
| LQ104V1DG83 | SHARP | 10.4 | 640×480 |
| LQ121S1LG45 | SHARP | 12.1 | 800×600 |
| LQ121S1LG51 | SHARP | 12.1 | 800×600 |
| LQ121S1LG72 | SHARP | 12.1 | 800×600 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ170E1LG21 | SHARP | 17.0 | 1280×1024 |
| TX26D30VM1AAA | KOE | 10.2 | 800×256 |
