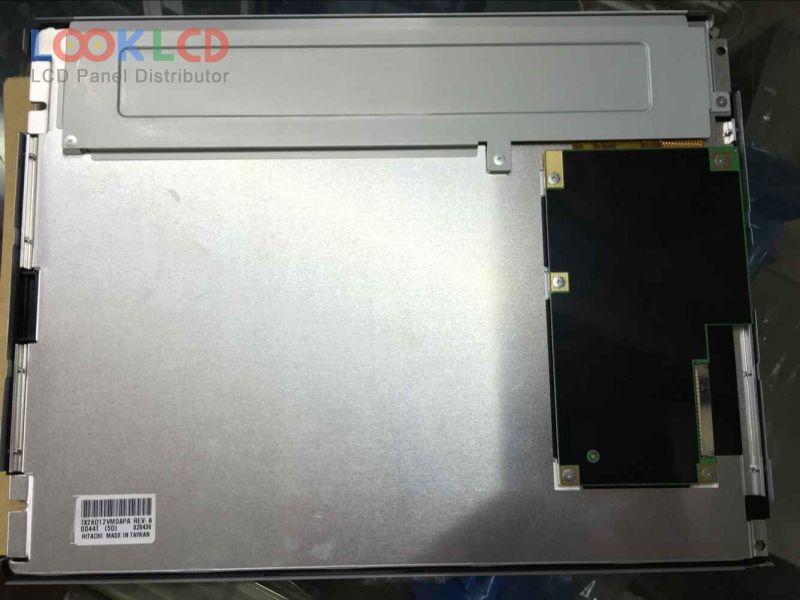

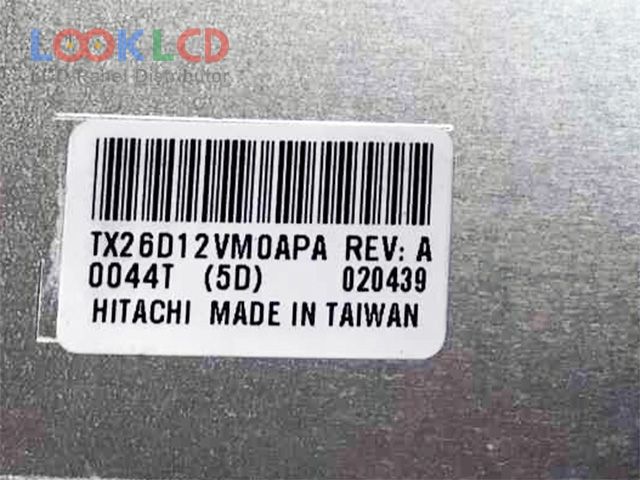

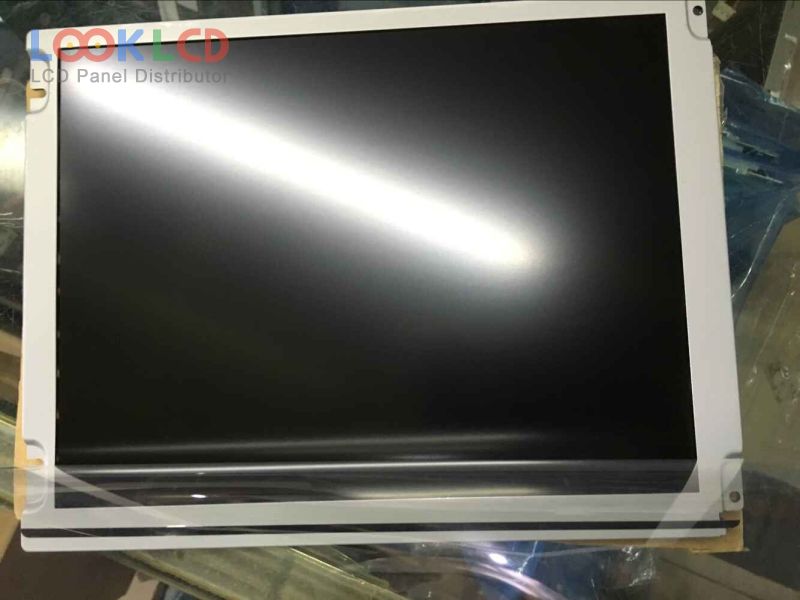

| Číslo dielu | TX26D12VM0APA |
| Značka | KOE |
| Veľkosť | 10.4 |
| Aplikácia | IA |
| Rozhodnutie | 800×600 |
| Zloženie | LCM |
| Jas | 360 |
| CR | 800:1 |
| Farby | 262K/16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | HITACHI |
| panelový model | TX26D12VM0APA |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.4 inch |
| rozhodnutie | 800(RGB)×600 , SVGA |
| režim zobrazenia | IPS, Normally Black, Transmissive |
| aktívna oblasť | 211.2×158.4 mm |
| obrys | 243×185.1 mm |
| povrch | Antiglare |
| jas | 360 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193154% |
| Doba odozvy | 25 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S8PWLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | IA |
