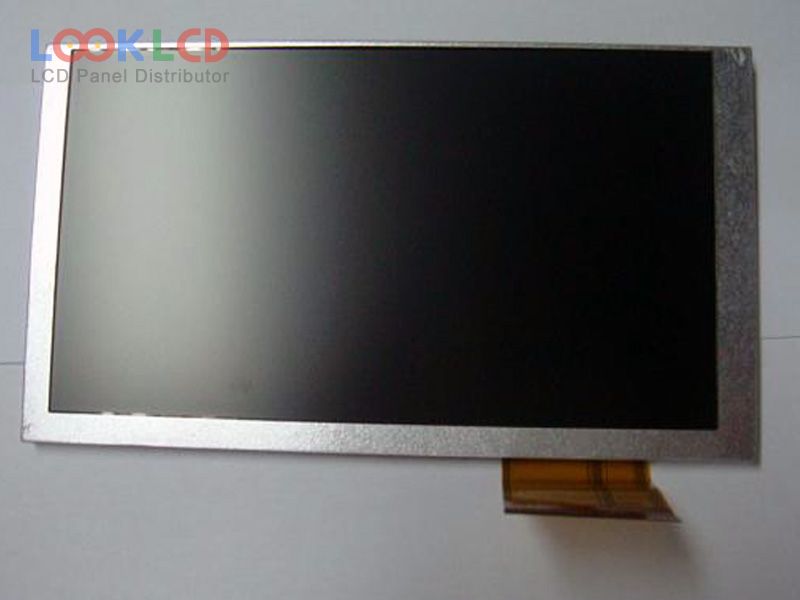

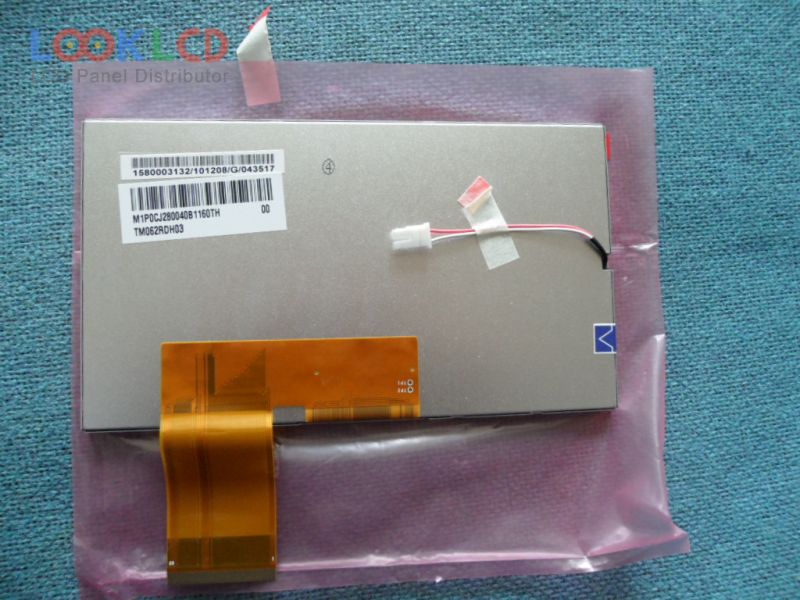

| Číslo dielu | TM062RDH03 |
| Značka | Tianma |
| Veľkosť | 6.2 |
| Aplikácia | CNS |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 500:1 |
| Farby | 262K/16.7M |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | TIANMA |
| panelový model | TM062RDH03 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 6.2 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 137.4×77.28 mm |
| obrys | 155.2×88.2×5.2 mm |
| povrch | Antiglare |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193147% |
| Doba odozvy | 20 (Typ.)(Tr+Td) |
| pozorovací uhol | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S8PWLEDWithout Driver |
| signálové rozhranie | TTL (1 ch, 8-bit), 60 pins |
| vstupné napätie | 3.3/9.84/19/-7V (Typ.)(AVCC/DVCC/VGH/VGL) |
| aplikácie | CNS |
