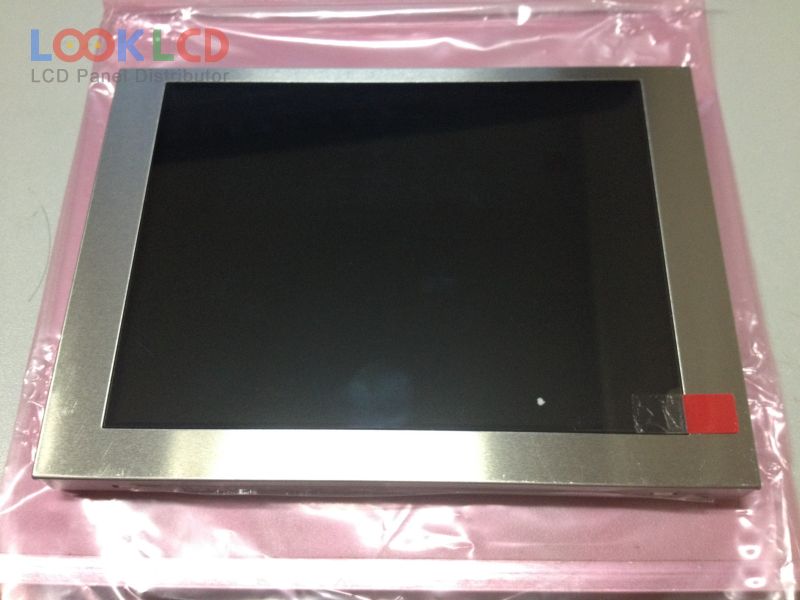

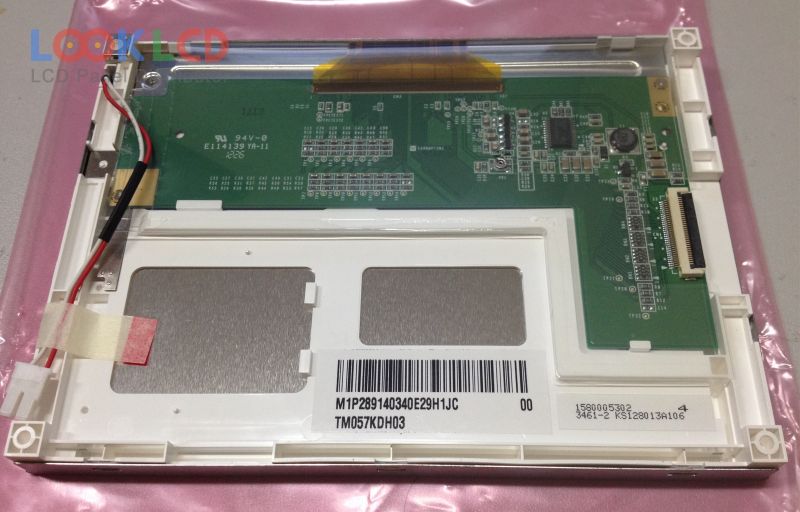

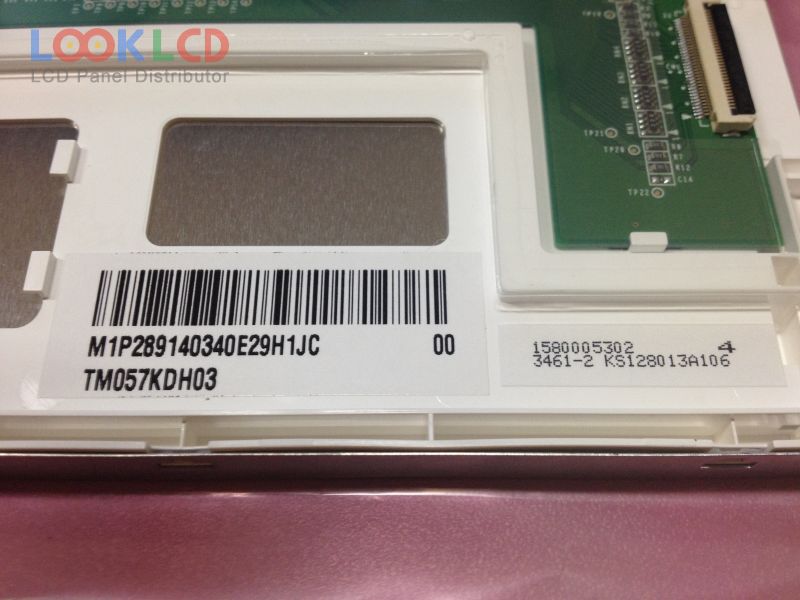

| Číslo dielu | TM057KDH03 |
| Značka | Tianma |
| Veľkosť | 5.7 |
| Aplikácia | IA |
| Rozhodnutie | 320×240 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 500:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | TIANMA |
| panelový model | TM057KDH03 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 5.7 inch |
| rozhodnutie | 320(RGB)×240 , QVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 115.2×86.4 mm |
| obrys | 144×104.6×12.8 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193150% |
| Doba odozvy | 20 (Typ.)(Tr+Td) |
| pozorovací uhol | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S5PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 6-bit), 33 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | IA |
