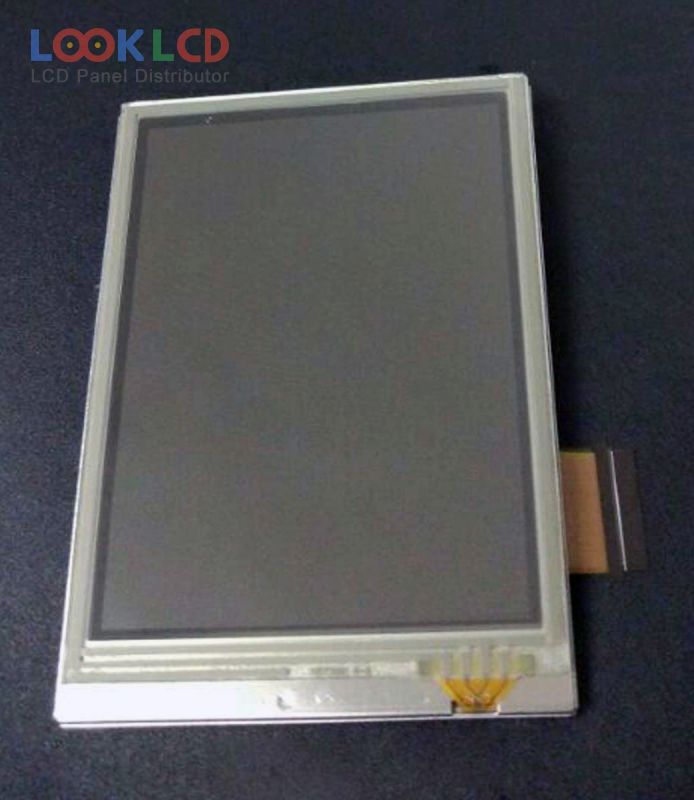

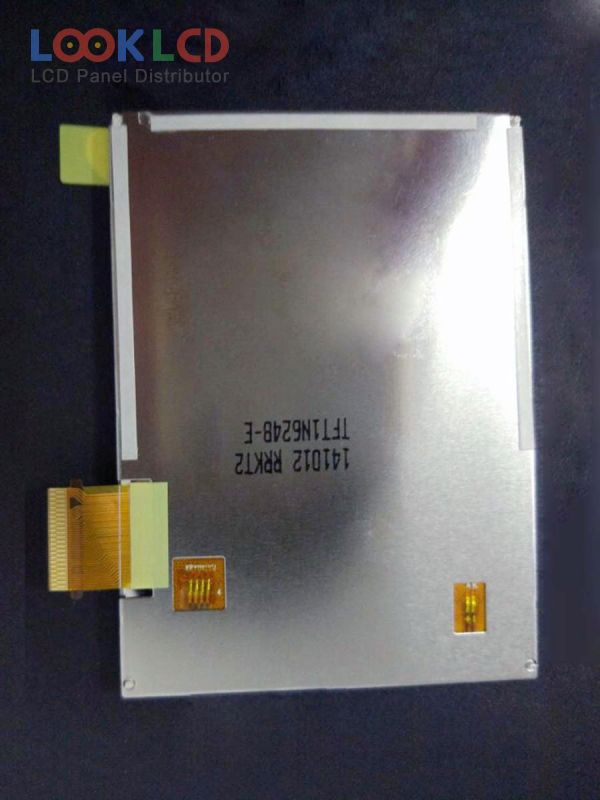

| Číslo dielu | TFT1N6248-E |
| Značka | Other |
| Veľkosť | 3.2 |
| Aplikácia | |
| Rozhodnutie | 240×320 |
| Zloženie | LCM |
| Jas | 80 |
| CR | |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | TRULY |
| panelový model | TFT1N6248-E |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 3.2 inch |
| rozhodnutie | 240(RGB)×320 , QVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 48.6×64.8 mm |
| obrys | 57.54×79.2 mm |
| povrch | |
| jas | 80 cd/m² (Typ.) |
| kontrastný pomer | |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 48 (Typ.)(Tr+Td) |
| pozorovací uhol | 34/45/80/42 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 6-bit) + SPI, 45 pins |
| vstupné napätie | 2.8V (Typ.) |
