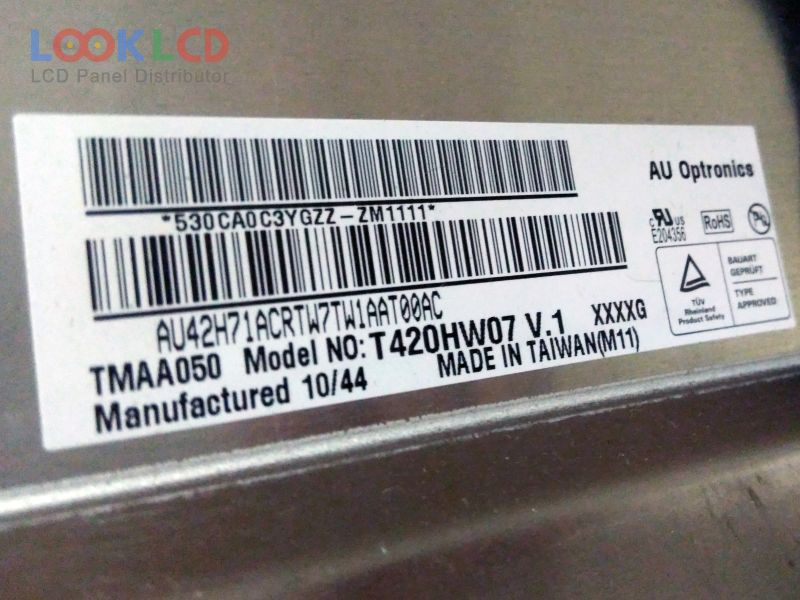

| Číslo dielu | T420HW07 V1 |
| Značka | AUO |
| Veľkosť | 42 |
| Aplikácia | LCTV |
| Rozhodnutie | 1920×1080 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 4000:1 |
| Farby | 1.07B |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | AUO |
| panelový model | T420HW07 V1 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 42 inch |
| rozhodnutie | 1920(RGB)×1080 , FHD |
| režim zobrazenia | AMVA3, Normally Black, Transmissive |
| aktívna oblasť | 930.24×523.26 mm |
| obrys | 973.2×566.2×23.9 mm |
| povrch | Antiglare (Haze 11%), Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 4000:1 (Typ.) |
| zobraziť farby | 1.07B (8-bit + Hi-FRC), CIE193172% |
| Doba odozvy | 6.5 (Typ.)(G to G) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 120Hz |
| typ lampy | WLEDWithout Driver |
| signálové rozhranie | LVDS (4 ch, 10-bit), 92 pins |
| vstupné napätie | 12.0V (Typ.) |
| aplikácie | LCTV |
| T420HVN02.1 | AUO | 42 | 1920×1080 |
| T420HVN04.5 CELL | AUO | 42 | 1920×1080 |
| T420HVN06.1 | AUO | 42 | 1920×1080 |
| T420HW01 V2 | AUO | 42 | 1920×1080 |
| T420HW02 V0 | AUO | 42 | 1920×1080 |
| T420HW04 V2 | AUO | 42 | 1920×1080 |
| T420HW07 V0 | AUO | 42 | 1920×1080 |
| T420HW08 V0 CELL | AUO | 42 | 1920×1080 |
| T420HW08 V5 | AUO | 42 | 1920×1080 |
| T420HW09 V2 | AUO | 42 | 1920×1080 |
| LC260EXN-SCA1 | LG Display | 26.0 | 1366×768 |
| LC370WUG-SCA2 | LG Display | 37 | 1920×1080 |
| LC420WUE-SCV1 | LG Display | 42 | 1920×1080 |
| LTA320HJ06 | Samsung | 31.5 | 1920×1080 |
| LTA430HW01 | Samsung | 43 | 1920×1080 |
| LTA520HB13 | Samsung | 52 | 1920×1080 |
| T645HW04 V0 CELL | AUO | 65 | 1920×1080 |
| V260B3-LE1 | Innolux | 26.0 | 1366×768 |
| V400DJ1-QS5 | Innolux | 40 | 3840×2160 |
| V580DK1-LS1 | Innolux | 58 | 3840×2160 |
