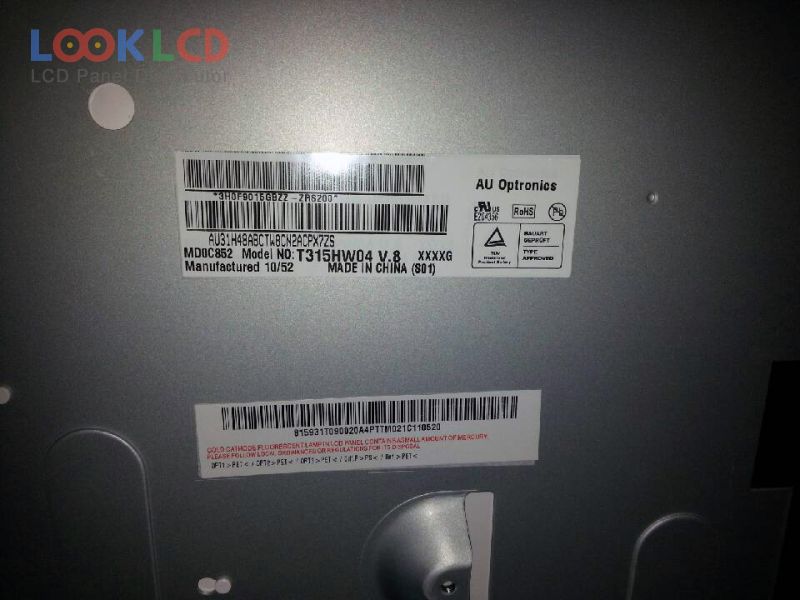

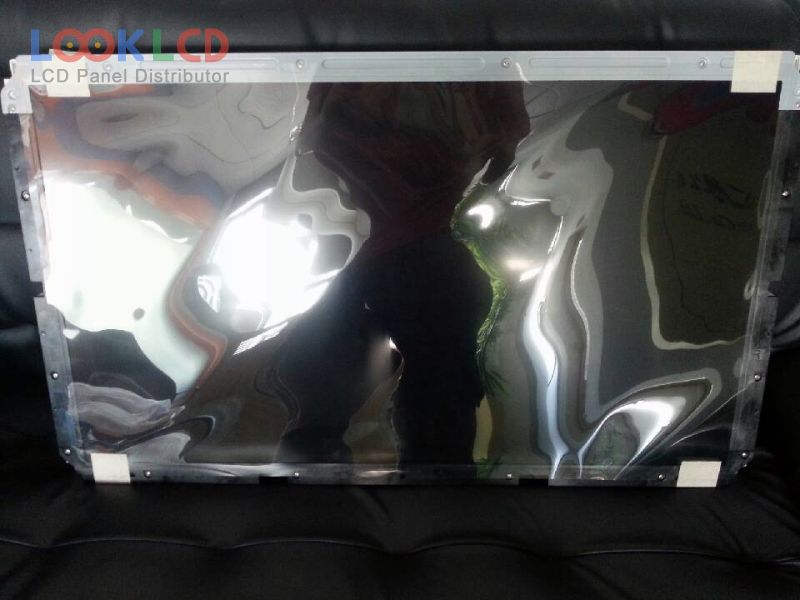

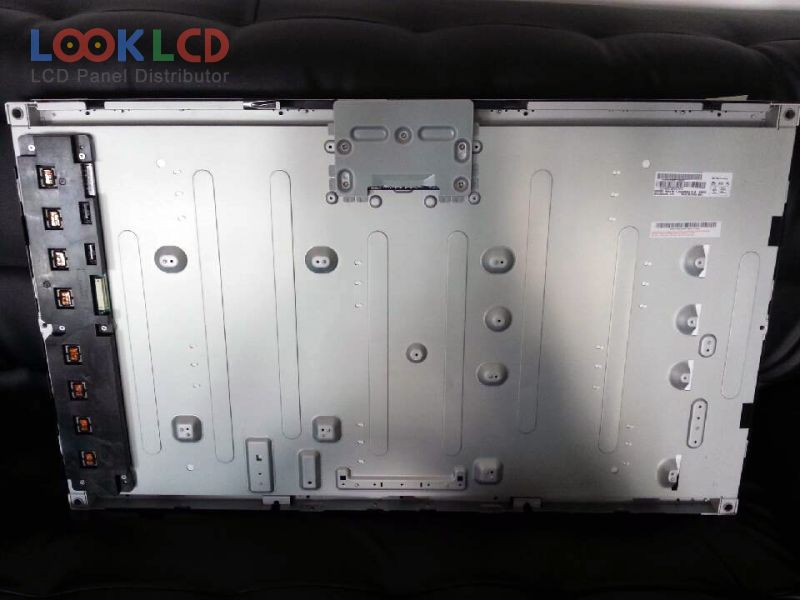

| Číslo dielu | T315HW04 V8 |
| Značka | AUO |
| Veľkosť | 31.5 |
| Aplikácia | LCTV |
| Rozhodnutie | 1920×1080 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 5000:1 |
| Farby | 16.7M |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | AUO |
| panelový model | T315HW04 V8 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 31.5 inch |
| rozhodnutie | 1920(RGB)×1080 , FHD |
| režim zobrazenia | AMVA3, Normally Black, Transmissive |
| aktívna oblasť | 698.4×392.85 mm |
| obrys | 760×450 mm |
| povrch | Antiglare (Haze 11%), Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 5000:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193172% |
| Doba odozvy | 6.5 (Typ.)(G to G) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4 pcsCCFLEmbedded (Inverter) |
| signálové rozhranie | LVDS (2 ch, 8-bit), 51 pins |
| vstupné napätie | 12.0V (Typ.) |
| aplikácie | LCTV |
| T315HB01 V1 | AUO | 31.5 | 1920×1080 |
| T315HW02 V0 | AUO | 31.5 | 1920×1080 |
| T315HW02 V1 | AUO | 31.5 | 1920×1080 |
| T315HW02 VB | AUO | 31.5 | 1920×1080 |
| T315HW04 V8 | AUO | 31.5 | 1920×1080 |
| T315HW04 VD | AUO | 31.5 | 1920×1080 |
| T315HW05 V1 | AUO | 31.5 | 1920×1080 |
| T315HW05 V2 | AUO | 31.5 | 1920×1080 |
| T315HW07 V0 | AUO | 31.5 | 1920×1080 |
| T315HW07 V2 | AUO | 31.5 | 1920×1080 |
| HV320WHB-N00 | BOE | 31.5 | 1366×768 |
| LC260EXN-SDA3 | LG Display | 26.0 | 1366×768 |
| LC260WUN-SBA1 | LG Display | 26.0 | 1920×1080 |
| LC370EUN-SDF1 | LG Display | 37 | 1920×1080 |
| LC370WUE-SBB2 | LG Display | 37 | 1920×1080 |
| LC370WXE-SDP1 | LG Display | 37 | 1366×768 |
| LC546PU1L01 | PANDA | 55 | 3840×2160 |
| LTA230W2-L01 | Samsung | 23.0 | 1366×768 |
| T460HVN08.2 CELL | AUO | 46 | 1920×1080 |
| V400HJ6-PE1 | Innolux | 40 | 1920×1080 |
