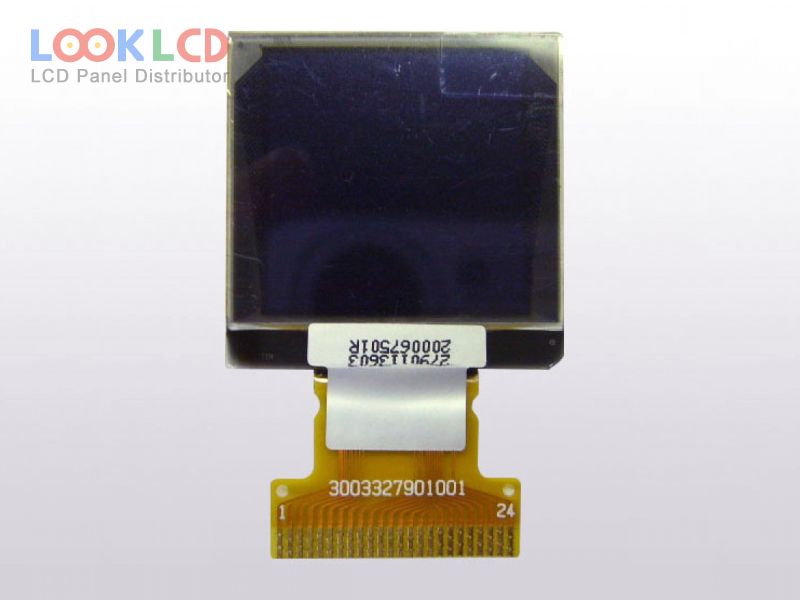

| Číslo dielu | RGC11096096YR000 |
| Značka | RiTdisplay |
| Veľkosť | 1.1 |
| Aplikácia | IA |
| Rozhodnutie | 96×96 |
| Zloženie | OLED |
| Jas | 80 |
| CR | 2000:1 |
| Farby | Mono(Yellow) |
| Podsvietenie | self |
| Rozhranie | CPU/SPI/I²C |
| značka panelu | RiTdisplay |
| panelový model | RGC11096096YR000 |
| typ panelu | PM-OLED , OLED |
| veľkosť panelu | 1.1 inch |
| rozhodnutie | 96×96 |
| aktívna oblasť | 20.14×20.14 mm |
| obrys | 27×27×1.71 mm |
| povrch | Antiglare |
| jas | 80 cd/m² (Typ.) |
| kontrastný pomer | 2000 : 1 (Min.) |
| zobraziť farby | Mono(Yellow) |
| pozorovací uhol | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvencia | 105Hz |
| vodič ic | COG Built-in SSD1327 |
| signálové rozhranie | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 24 pins |
| vstupné napätie | 2.5/3.5/13.0V (Typ.)(VDD/VCI/VCC) |
| aplikácie | IA |
