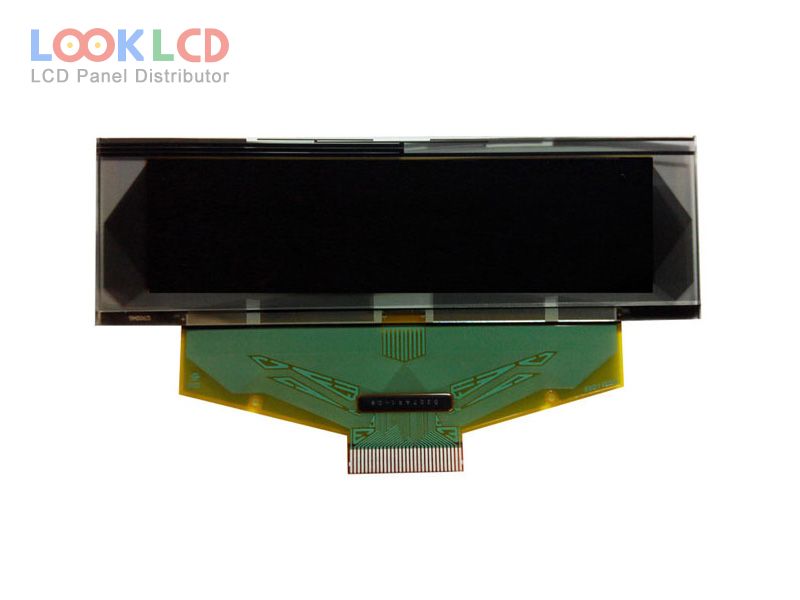

| Číslo dielu | OEL9M0065-B-E |
| Značka | Other |
| Veľkosť | 2.7 |
| Aplikácia | IA |
| Rozhodnutie | 256×64 |
| Zloženie | OLED |
| Jas | |
| CR | 10000:1 |
| Farby | Grayscale(B) |
| Podsvietenie | self |
| Rozhranie | CPU/SPI |
| značka panelu | TRULY |
| panelový model | OEL9M0065-B-E |
| typ panelu | PM-OLED , OLED |
| veľkosť panelu | 2.7 inch |
| rozhodnutie | 256×64 |
| aktívna oblasť | 66.53×16.61 mm |
| obrys | 82×25.5×1.6 mm |
| povrch | |
| jas | |
| kontrastný pomer | 10000 : 1 (Min.) |
| zobraziť farby | Grayscale(B) (4-bit) |
| pozorovací uhol | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvencia | 100Hz |
| vodič ic | COF Built-in SSD1322UR1 |
| signálové rozhranie | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| aplikácie | IA |
