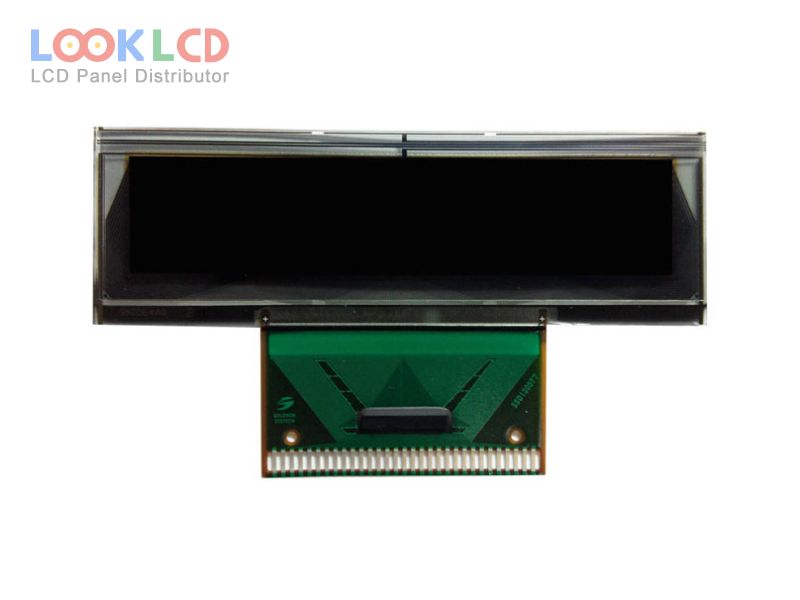

| Číslo dielu | OEL9M0064-W-E |
| Značka | Other |
| Veľkosť | 2.0 |
| Aplikácia | IA |
| Rozhodnutie | 128×32 |
| Zloženie | OLED |
| Jas | 60 |
| CR | 10000:1 |
| Farby | Mono(White) |
| Podsvietenie | self |
| Rozhranie | CPU/SPI/I²C |
| značka panelu | TRULY |
| panelový model | OEL9M0064-W-E |
| typ panelu | PM-OLED , OLED |
| veľkosť panelu | 2.0 inch |
| rozhodnutie | 128×32 |
| aktívna oblasť | 50.535×10.695 mm |
| obrys | 59×18.86×1.6 mm |
| povrch | |
| jas | 60 cd/m² (Min.) |
| kontrastný pomer | 10000 : 1 (Min.) |
| zobraziť farby | Mono(White) (1-bit) |
| pozorovací uhol | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvencia | 100Hz |
| vodič ic | TAB Built-in SSD1305T7R1 |
| signálové rozhranie | 8-bit 6800/8080 parallel, SPI, I²C, 31 pins |
| aplikácie | IA |
| OEL9M0039-R-E | Other | 1.5 | 128×128 |
| OEL9M0065-G-E | Other | 2.7 | 256×64 |
| OEL9M0068-G-E | Other | 0.91 | 128×32 |
| OEL9M0073-B-E | Other | 1.0 | 128×64 |
| OEL9M0073-G-E | Other | 1.0 | 128×64 |
| OEL9M0073-R-E | Other | 1.0 | 128×64 |
| OEL9M0078-G-E | Other | 1.45 | 132×16 |
| OEL9M0078-R-E | Other | 1.45 | 132×16 |
| OEL9M0083-R-E | Other | 0.96 | 128×64 |
| OEL9M0083-W-E | Other | 0.96 | 128×64 |
| G150XTN04.0 | AUO | 15.0 | 1024×768 |
| G156BGE-L01 | Innolux | 15.6 | 1366×768 |
| HM150X01-101 | BOE | 15.0 | 1024×768 |
| LB104S01-TL02 | LG Display | 10.4 | 800×600 |
| LM64C350 | SHARP | 10.4 | 640×480 |
| LQ104V1DC41 | SHARP | 10.4 | 640×480 |
| LTM09C015A | TOSHIBA | 9.4 | 640×480 |
| NL8060BC26-17 | NLT | 10.4 | 800×600 |
| TM057QVHG01 | Tianma | 5.7 | 640×480 |
| UMSH-8377MD-8T | Other | 5.7 | 640×480 |
