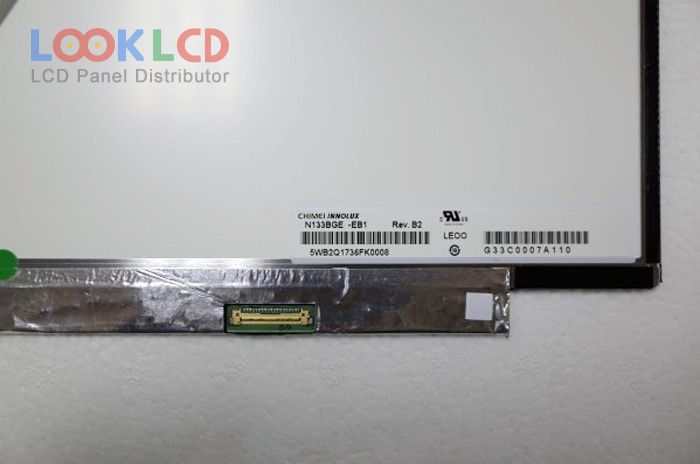

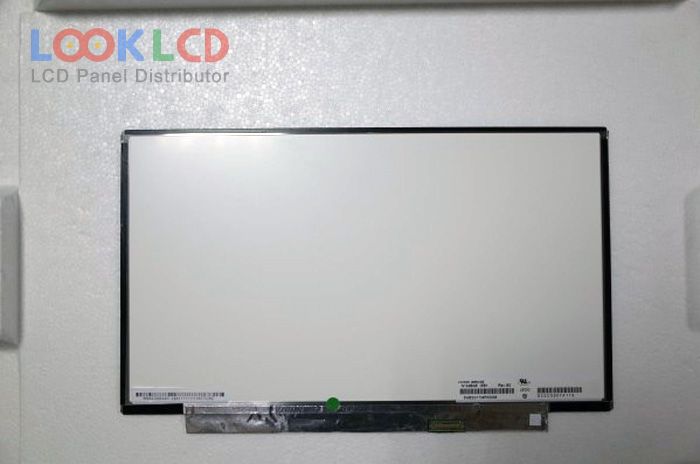

| Číslo dielu | N133BGE-EB1 |
| Značka | Innolux |
| Veľkosť | 13.3 |
| Aplikácia | NBPC |
| Rozhodnutie | 1366×768 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 650:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | eDP |
| značka panelu | INNOLUX |
| panelový model | N133BGE-EB1 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 13.3 inch |
| rozhodnutie | 1366(RGB)×768 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 293.42×164.97 mm |
| obrys | 306.3×189.15×2.85 mm |
| tvarový štýl | Slim (PCBA Flat, Depth ≤3.2mm) |
| povrch | Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 650:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193150% |
| Doba odozvy | 3/8 (Typ.)(Tr/Td) |
| pozorovací uhol | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | eDP (1 Lane), 30 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NBPC |
