| Číslo dielu | N116HSE-EA2 |
| Značka | Innolux |
| Veľkosť | 11.6 |
| Aplikácia | NBPC |
| Rozhodnutie | 1920×1080 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 700:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | eDP |
| značka panelu | CHIMEI INNOLUX |
| panelový model | N116HSE-EA2 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 11.6 inch |
| rozhodnutie | 1920(RGB)×1080 , FHD |
| režim zobrazenia | AAS, Normally Black, Transmissive |
| aktívna oblasť | 256.32×144.18 mm |
| obrys | 268×157.35×5.15 mm |
| tvarový štýl | Slim (PCBA Flat, Depth ≤3.2mm) |
| povrch | Antiglare, Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193172% |
| Doba odozvy | 14/11 (Typ.)(Tr/Td) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDWithout Driver |

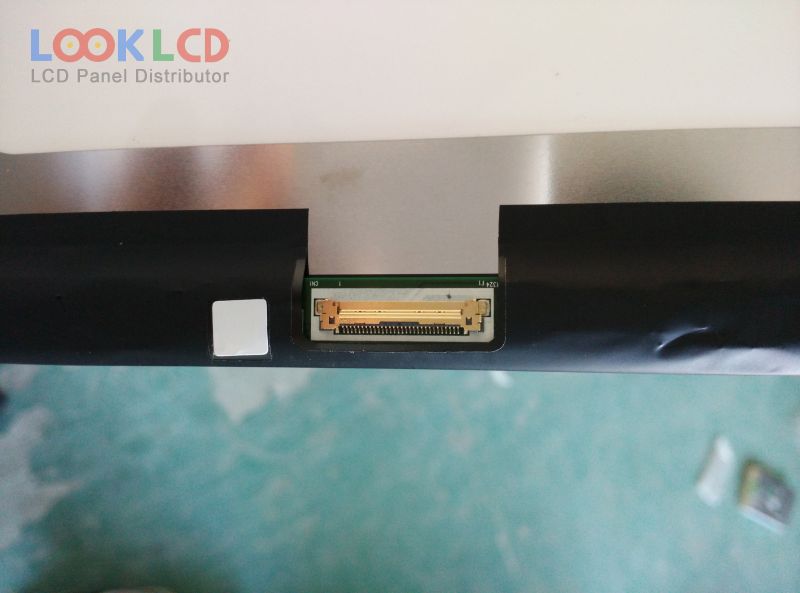

| signálové rozhranie | eDP (2 Lanes), 30 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NBPC |
